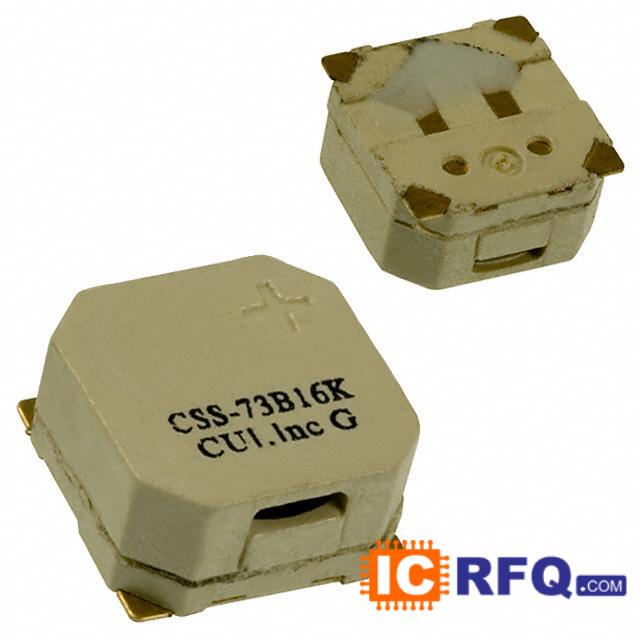

Technical Specifications of CSS-73B16K-SMT
| Product Photos | CSS-73B16K-SMT |
|---|
| Product Training Modules | Buzzer Overview |
|---|
| RoHS Information | CSS-73B16K-SMT Cert of Compliance |
|---|
| Catalog Drawings | CSS-73B16K-SMT SideCSS-73B16K-SMT Top |
|---|
| Design Resources | Buzzer SPL Calculator |
|---|
| Featured Product | Buzzers and Audio Alerts |
|---|
| 3D Model | CSS-73B16K-SMT |
|---|
| PCN Part Number | SMT Suffix 04/Apr/2013 |
|---|
| Standard Package | 1,000 |
|---|
| Category | Audio Products |
|---|
| Family | Buzzers |
|---|
| Series | CSS |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Driver Circuitry | Transducer, Externally Driven |
|---|
| Technology | Magnetic |
|---|
| Input Type | zero-peak Signal |
|---|
| Voltage - Rated | 3.6Vo-p |
|---|
| Voltage Range | 2.5 ~ 4.5V |
|---|
| Frequency | 2.73kHz |
|---|
| Operating Mode | Continuous |
|---|
| Sound Pressure Level | 87dB @ 3.6V, 10cm |
|---|
| Current - Supply | 100mA |
|---|
| Operating Temperature | -30°C ~ 70°C |
|---|
| Washable | No |
|---|
| Port Location | Side |
|---|
| Mounting Type | Surface Mount |
|---|
| Termination | Solder Pads |
|---|
| Size / Dimension | 8.5mm L x 8.5mm W x 4.3mm H |
|---|
| Capacitance @ Frequency | - |
|---|
| Online Catalog | CSS Series |
|---|
| Other Names | 102-1197-2 CSS-73B16K CSS73B16K |
|---|
We can supply CUI Inc. part# CSS-73B16K-SMT. Use the request quote form to request CSS-73B16K-SMT pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CSS-73B16K-SMT. The price and lead time for CSS-73B16K-SMT depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# CSS-73B16K-SMT. We look forward to doing business with you.
