Technical Specifications of A9BAA-2005F
| Datasheet |  A9BAA-2005F datasheet |
|---|

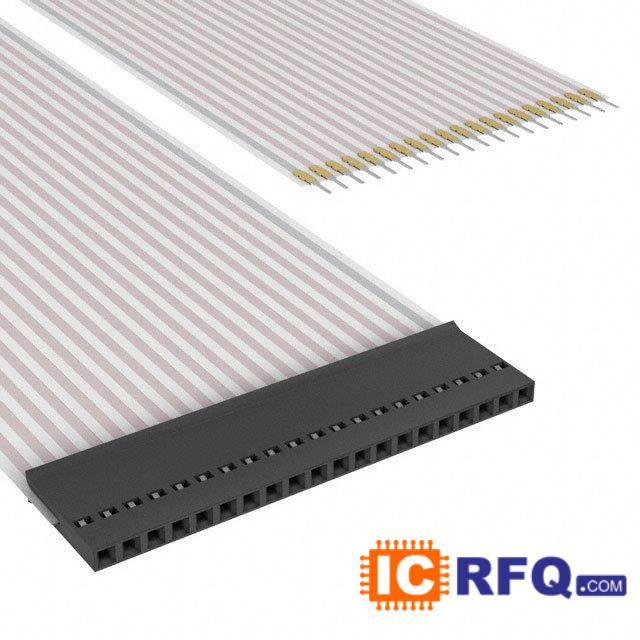

| Product Photos | A9BAx-200xx |
|---|
| Catalog Drawings | A9BAA Assembly Pin Out |
|---|
| Standard Package | 1 |
|---|
| Category | Cable Assemblies |
|---|
| Family | Flat Flex Cables (FFC, FPC) |
|---|
| Series | - |
|---|
| Contact Termination | Receptacle to Solder Tab |
|---|
| Length | 5.0" (127.0mm) |
|---|
| Number of Positions | 20 |
|---|
| Pitch | 0.100" (2.54mm) |
|---|
| Online Catalog | Flex Cable |
|---|
| Assembly Component | (20) 1-88997-2-ND - CONN CONTACT SLDR TAB FLAT FLEX (20) 2-487406-3-ND - CONN SOCKET FLEXFLAT .100 30GOLD (1) 1-487378-9-ND - CONN FFC RCPT HSG 20POS 2.54MM (1) AF20-500-ND - CABLE FLAT FLEX 20COND 0.100" |
|---|
| Alternate Length | A9BAA-2002F-ND - FLEX CABLE - AFF20A/AF20/AFE20T A9BAA-2003F-ND - FLEX CABLE - AFF20A/AF20/AFE20T A9BAA-2004F-ND - FLEX CABLE - AFF20A/AF20/AFE20T A9BAA-2006F-ND - FLEX CABLE - AFF20A/AF20/AFE20T A9BAA-2008F-ND - FLEX CABLE - AFF20A/AF20/AFE20T |
|---|
We can supply TE Connectivity AMP Connectors part# A9BAA-2005F. Use the request quote form to request A9BAA-2005F pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number A9BAA-2005F. The price and lead time for A9BAA-2005F depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# A9BAA-2005F. We look forward to doing business with you.
