Technical Specifications of A9BAG-1605F
| Datasheet |  A9BAG-1605F datasheet |
|---|

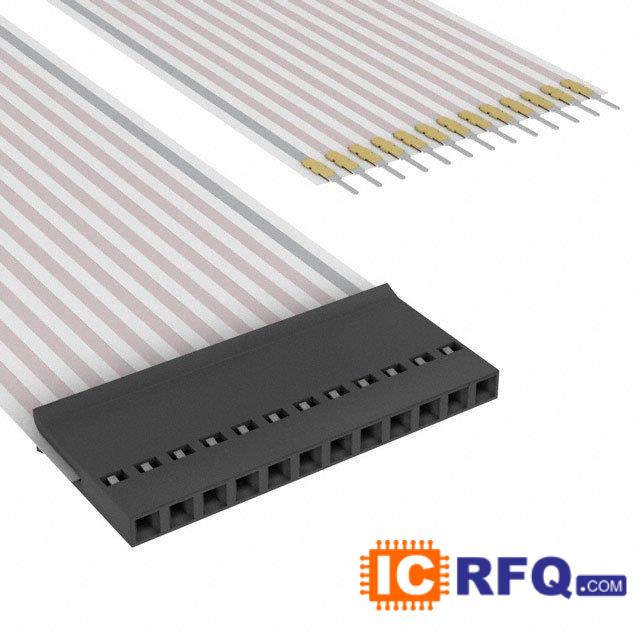

| Product Photos | A9BAx-160xx |
|---|
| Catalog Drawings | A9BAG Assembly Pin Out |
|---|
| Standard Package | 1 |
|---|
| Category | Cable Assemblies |
|---|
| Family | Flat Flex Cables (FFC, FPC) |
|---|
| Series | - |
|---|
| Contact Termination | Receptacle to Solder Tab |
|---|
| Length | 5.0" (127.0mm) |
|---|
| Number of Positions | 16 |
|---|
| Pitch | 0.100" (2.54mm) |
|---|
| Online Catalog | Flex Cable |
|---|
| Assembly Component | (16) 1-88997-2-ND - CONN CONTACT SLDR TAB FLAT FLEX (16) 2-487406-2-ND - CONN SOCKET FLEXFLAT .100 15GOLD (1) 1-487378-5-ND - CONN FFC RCPT HSG 16POS 2.54MM (1) AF16-500-ND - CABLE FLAT FLEX 16COND 0.100" |
|---|
| Alternate Length | A9BAG-1602F-ND - FLEX CABLE - AFF16G/AF16/AFE16T A9BAG-1603F-ND - FLEX CABLE - AFF16G/AF16/AFE16T A9BAG-1604F-ND - FLEX CABLE - AFF16G/AF16/AFE16T A9BAG-1606F-ND - FLEX CABLE - AFF16G/AF16/AFE16T A9BAG-1608F-ND - FLEX CABLE - AFF16G/AF16/AFE16T |
|---|
We can supply TE Connectivity AMP Connectors part# A9BAG-1605F. Use the request quote form to request A9BAG-1605F pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number A9BAG-1605F. The price and lead time for A9BAG-1605F depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# A9BAG-1605F. We look forward to doing business with you.
