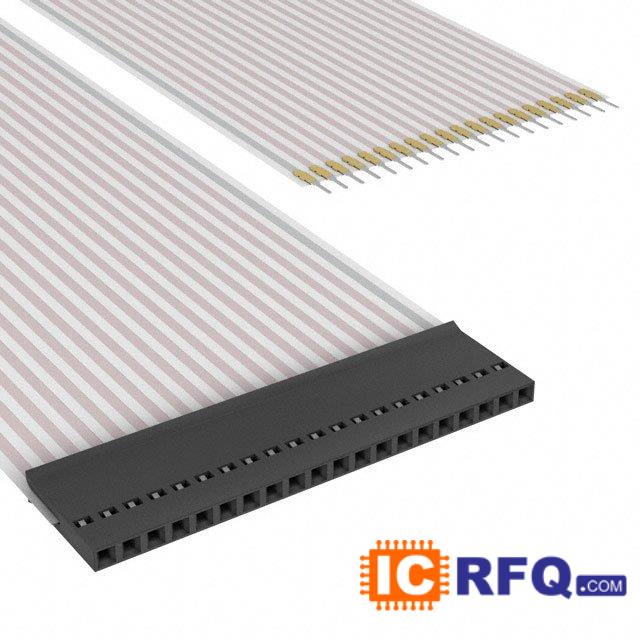

Technical Specifications of A9BAA-2006E
| Datasheet |  A9BAA-2006E datasheet |
|---|
| Product Photos | A9BAx-200xx |
|---|
| Catalog Drawings | A9BAA Assembly Pin Out |
|---|
| Standard Package | 1 |
|---|
| Category | Cable Assemblies |
|---|
| Family | Flat Flex Cables (FFC, FPC) |
|---|
| Series | - |
|---|
| Contact Termination | Receptacle to Solder Tab |
|---|
| Length | 6.0" (152.4mm) |
|---|
| Number of Positions | 20 |
|---|
| Pitch | 0.050" (1.27mm) |
|---|
| Online Catalog | Flex Cable |
|---|
| Assembly Component | (20) A101782CT-ND - CONN RECEPT .050 CRIMP LONG GOLD (20) 487923-4-ND - CONN SOLDER TAB .050 LONG TIN (1) 1-487544-7-ND - CONN FFC RCPT HSG 20POS 1.27MM (1) AE20-500-ND - CABLE FLAT FLEX 20COND 0.050" |
|---|
| Alternate Length | A9BAA-2002E-ND - FLEX CABLE - AFJ20A/AE20/AFH20T A9BAA-2003E-ND - FLEX CABLE - AFJ20A/AE20/AFH20T A9BAA-2004E-ND - FLEX CABLE - AFJ20A/AE20/AFH20T A9BAA-2005E-ND - FLEX CABLE - AFJ20A/AE20/AFH20T A9BAA-2008E-ND - FLEX CABLE - AFJ20A/AE20/AFH20T |
|---|
We can supply TE Connectivity AMP Connectors part# A9BAA-2006E. Use the request quote form to request A9BAA-2006E pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number A9BAA-2006E. The price and lead time for A9BAA-2006E depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# A9BAA-2006E. We look forward to doing business with you.
