Technical Specifications of C2012X7S2A154M085AB
| Datasheet |  C2012X7S2A154M085AB datasheet |
|---|

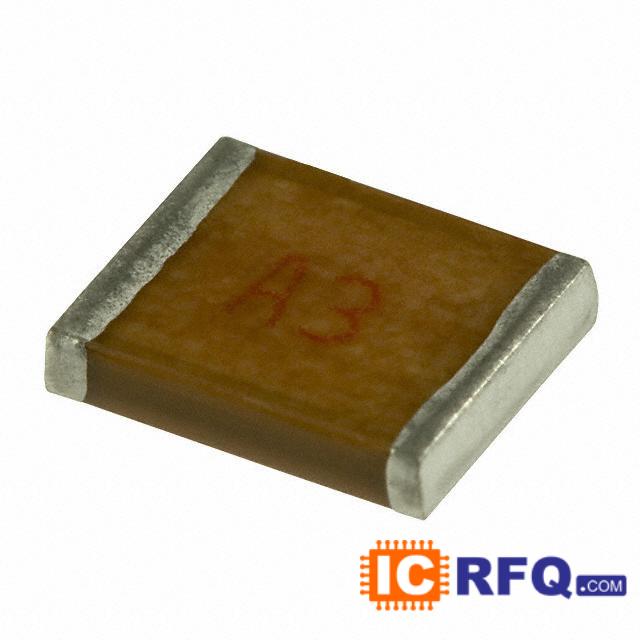

| Product Photos | C Series 0805(2012 Metric) 10 |
|---|
| Product Training Modules | SEAT, CCV, and TVCL Design ToolsC Series Mid Voltage Capacitors FamilyGuide to Replacing an Electrolytic Capacitor with an MLCC |
|---|
| Video File | High Capacitance Capacitor Measurement Tutorial |
|---|
| RoHS Information | RoHS Certificate-MLCC |
|---|
| Catalog Drawings | C SERIES_2012-0805-1.0 |
|---|
| Featured Product | Mid Voltage X7S 100 V MLCCsC-Series Mid Voltage MLCCs |
|---|
| PCN Part Number | MLCC Part Number Change 30/Nov/2012 |
|---|
| EDA / CAD Models | Download from Accelerated Designs |
|---|
| Standard Package | 4,000 |
|---|
| Category | Capacitors |
|---|
| Family | Ceramic Capacitors |
|---|
| Series | C |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Capacitance | 0.15μF |
|---|
| Tolerance | ±20% |
|---|
| Voltage - Rated | 100V |
|---|
| Temperature Coefficient | X7S |
|---|
| Mounting Type | Surface Mount, MLCC |
|---|
| Operating Temperature | -55°C ~ 125°C |
|---|
| Applications | General Purpose |
|---|
| Ratings | - |
|---|
| Package / Case | 0805 (2012 Metric) |
|---|
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
|---|
| Height - Seated (Max) | - |
|---|
| Thickness (Max) | 0.039" (1.00mm) |
|---|
| Lead Spacing | - |
|---|
| Features | - |
|---|
| Lead Style | - |
|---|
| Online Catalog | C Series, Mid Voltage |
|---|
| Other Names | 445-6037-2 C2012X7S2A154M C2012X7S2A154MT000N |
|---|
We can supply TDK Corporation part# C2012X7S2A154M085AB. Use the request quote form to request C2012X7S2A154M085AB pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number C2012X7S2A154M085AB. The price and lead time for C2012X7S2A154M085AB depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# C2012X7S2A154M085AB. We look forward to doing business with you.
