Technical Specifications of SMBJ70CA-TP
| Datasheet |  SMBJ70CA-TP datasheet |
|---|

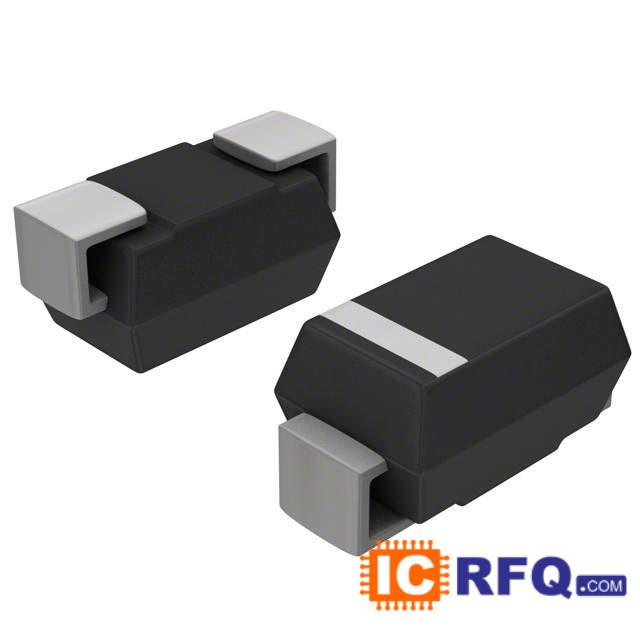

| Product Photos | DO-214AA SMB |
|---|
| Product Training Modules | Transient Voltage SuppressorsDiode Handling and Mounting |
|---|
| Catalog Drawings | SMB Series Top |
|---|
| Featured Product | Surface Mount TVS |
|---|
| PCN Design/Specification | TVS Breakdown Voltage 15/May/2013 |
|---|
| Standard Package | 3,000 |
|---|
| Category | Circuit Protection |
|---|
| Family | TVS - Diodes |
|---|
| Series | - |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Type | Zener |
|---|
| Unidirectional Channels | - |
|---|
| Bidirectional Channels | 1 |
|---|
| Voltage - Reverse Standoff (Typ) | 70V |
|---|
| Voltage - Breakdown (Min) | 77.8V |
|---|
| Voltage - Clamping (Max) @ Ipp | 113V |
|---|
| Current - Peak Pulse (10/1000μs) | 5.3A |
|---|
| Power - Peak Pulse | 600W |
|---|
| Power Line Protection | No |
|---|
| Applications | General Purpose |
|---|
| Capacitance @ Frequency | - |
|---|
| Operating Temperature | -55°C ~ 175°C (TJ) |
|---|
| Mounting Type | Surface Mount |
|---|
| Package / Case | DO-214AA, SMB |
|---|
| Supplier Device Package | DO-214AA (SMB) |
|---|
| Online Catalog | SMA6F, SMA6J and SMBJ Series |
|---|
| Other Names | SMBJ70CA-TPMSTR |
|---|
We can supply Micro Commercial Co part# SMBJ70CA-TP. Use the request quote form to request SMBJ70CA-TP pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SMBJ70CA-TP. The price and lead time for SMBJ70CA-TP depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# SMBJ70CA-TP. We look forward to doing business with you.
