HM2S02PE5101N9LF

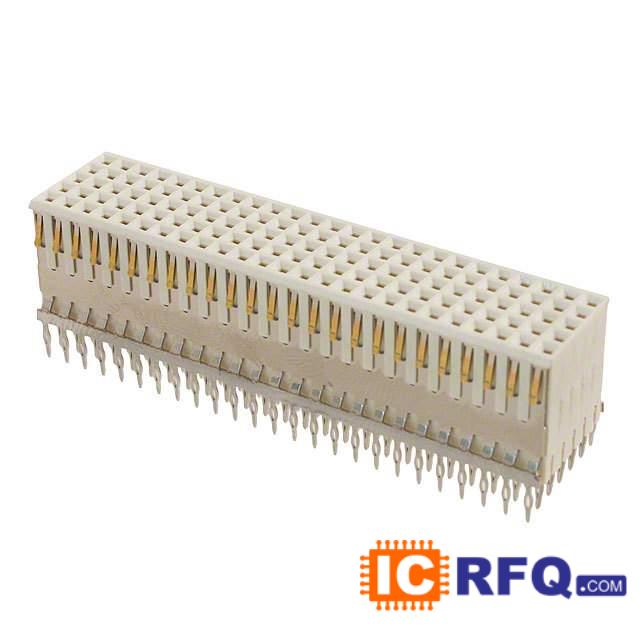

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | HM2S02PE5101N9LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN RECEPT 125POS TYPE B VERT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| HM2S02PE5101N9LF Price |  |
Technical Specifications of HM2S02PE5101N9LF
| Datasheet |  HM2S02PE5101N9LF datasheet |
|---|---|
| Product Photos | HM2S02PE5101N9LF |
| Catalog Drawings | HM2S Series |
| PCN Design/Specification | Millipacs Receptacle series/Plating 28/Jul/2009 |
| PCN Assembly/Origin | Millipacs Series 21/Aug/2012 |
| PCN Other | MPACS Receptacles Material 02/Jul/2014 |
| Standard Package | 36 |
| Category | Connectors, Interconnects |
| Family | Backplane Connectors - Hard Metric, Standard |
| Series | Millipacs? |
| Packaging | Tray |
| Connector Type | Receptacle, Female Sockets |
| Connector Style | B 25 |
| Number of Positions | 125 |
| Number of Positions Loaded | All |
| Pitch | 0.079" (2.00mm) |
| Number of Rows | 5 |
| Mounting Type | Through Hole |
| Termination | Press-Fit |
| Connector Usage | CompactPCI |
| Contact Finish | Gold, GXT? |
| Contact Finish Thickness | Flash |
| Current Rating | 1.5A |
| Voltage Rating | 500V |
| Operating Temperature | -55°C ~ 125°C |
| Features | Upper and Lower Shield |
| Online Catalog | Millipacs? Series |
| Mating Products | HM2P08PK5111GFLF-ND - CONN HEADER 125POS TYPE B VERT HM2J08PE5118N9LF-ND - CONN HEADER 125POS TYPE B R/A |
| Other Names | 609-2153 |
