TX24-60R-12ST-H1E

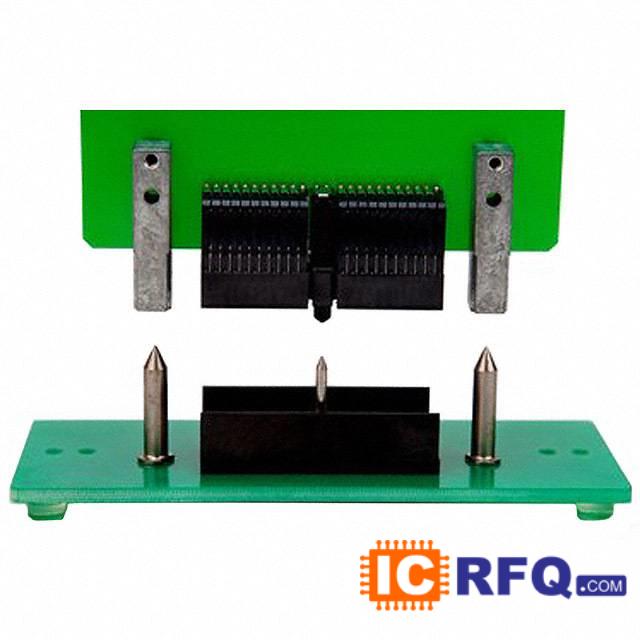

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | TX24-60R-12ST-H1E |
|---|---|
| Manufacturer | JAE Electronics |
| Description | 60 Position Connector Receptacle, Outer Shroud Contacts Through Hole Gold |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| TX24-60R-12ST-H1E Price |  |
Technical Specifications of TX24-60R-12ST-H1E
| Datasheet |  TX24-60R-12ST-H1E datasheet |
|---|---|
| Category | Connectors, Interconnects |
| Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
| Manufacturer | JAE-Electronics |
| Series | TX24 |
| Packaging | Tray |
| Connector Type | Receptacle, Outer Shroud Contacts |
| Number of Positions | 60 |
| Pitch | 0.050" (1.27mm) |
| Number of Rows | 2 |
| Mounting Type | Through Hole |
| Features | Board Lock |
| Contact Finish | Gold |
| Contact Finish Thickness | 3.9μin (0.10μm) |
| Mated Stacking Heights | 18mm, 20mm, 24mm |
| Height Above Board | 0.642" (16.30mm) |
