76745-8DP-10LF

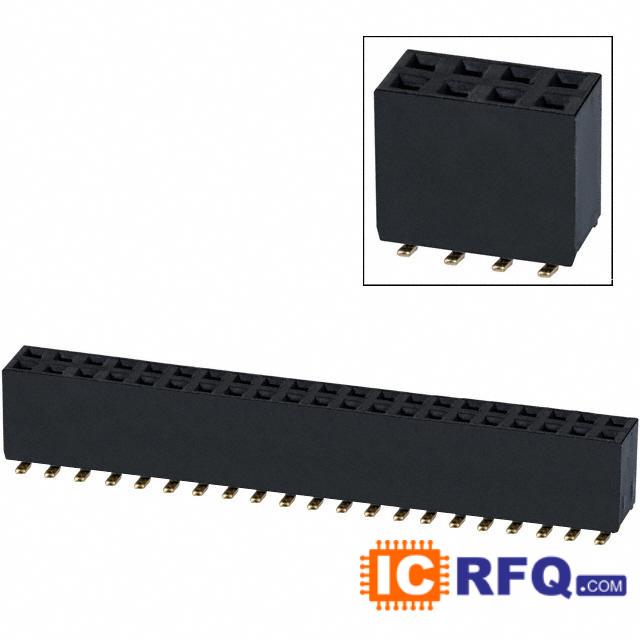

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | 76745-8DP-10LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN STACKER 10POS 0.100" T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| 76745-8DP-10LF Price |  |
Technical Specifications of 76745-8DP-10LF
| Datasheet |  76745-8DP-10LF datasheet |
|---|---|
| Category | Connectors, Interconnects |
| Family | Rectangular - Board to Board Connectors - Board Spacers, Stackers |
| Manufacturer | Amphenol-FCI |
| Series | BERGSTIK? II, MezzSelect?, Basics+ |
| Packaging | Bulk |
| Number of Positions | 10 |
| Pitch | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing | 0.100" (2.54mm) |
| Length - Overall | 1.189" (30.20mm) |
| Length - Post (Mating) | 0.315" (7.99mm) |
| Length - Stack Height | 0.661" (16.80mm) |
| Length - Tail | 0.213" (5.40mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Contact Finish - Post (Mating) | Gold, GXT? |
| Contact Finish Thickness - Post (Mating) | 15μin (0.38μm) |
| Color | Black |
