0039291208

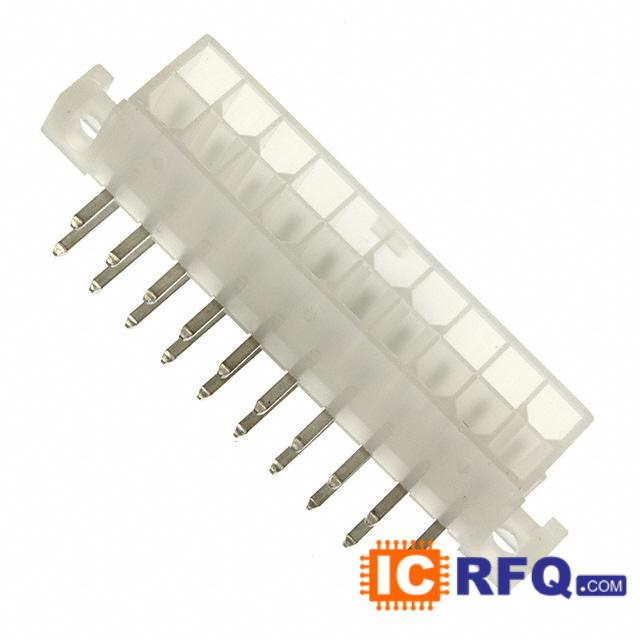

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | 0039291208 |
|---|---|
| Manufacturer | Molex, LLC |
| Description | 20 Positions Header, Shrouded Connector 0.165" (4.20mm) Through Hole, Right Angle Tin |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| 0039291208 Price |  |
Technical Specifications of 0039291208
| Datasheet |  0039291208 datasheet |
|---|---|
| Category | Connectors, Interconnects |
| Family | Rectangular Connectors - Headers, Male Pins |
| Manufacturer | Molex, LLC |
| Series | Mini-Fit? Jr? 5569 |
| Packaging | Tray |
| Contact Type | Male Pin |
| Connector Type | Header, Shrouded |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Pitch | 0.165" (4.20mm) |
| Number of Rows | 2 |
| Row Spacing | 0.165" (4.20mm) |
| Contact Mating Length | - |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Features | - |
| Contact Finish | Tin |
| Contact Finish Thickness | 200μin (5.08μm) |
| Color | Natural |
