PTC36DBDN

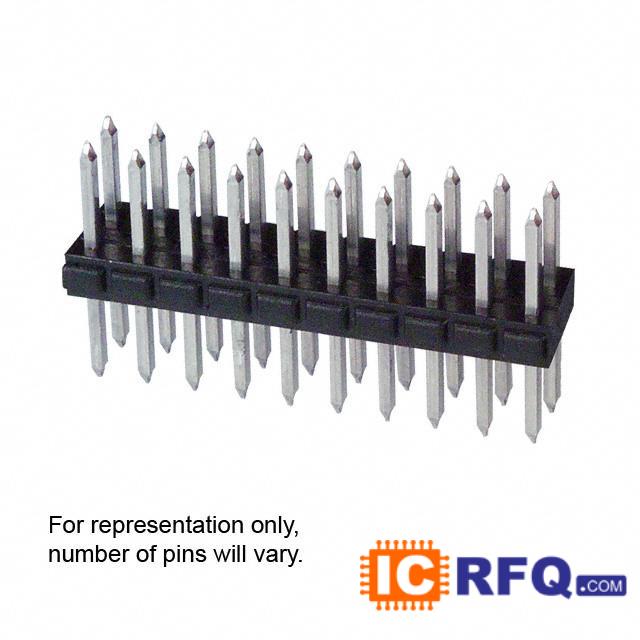

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | PTC36DBDN |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | 72 Positions Header, Unshrouded Connector 0.100" (2.54mm) Through Hole, Right Angle Tin |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| PTC36DBDN Price |  |
Technical Specifications of PTC36DBDN
| Category | Connectors, Interconnects |
|---|---|
| Family | Rectangular Connectors - Headers, Male Pins |
| Manufacturer | Sullins Connector Solutions |
| Series | - |
| Packaging | Bulk |
| Contact Type | Male Pin |
| Connector Type | Header, Unshrouded |
| Number of Positions | 72 |
| Number of Positions Loaded | All |
| Pitch | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing | 0.100" (2.54mm) |
| Contact Mating Length | 0.230" (5.84mm) |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | - |
| Features | - |
| Contact Finish | Tin |
| Contact Finish Thickness | 100μin (2.54μm) |
| Color | Black |
