0149-0-15-01-30-02-04-0

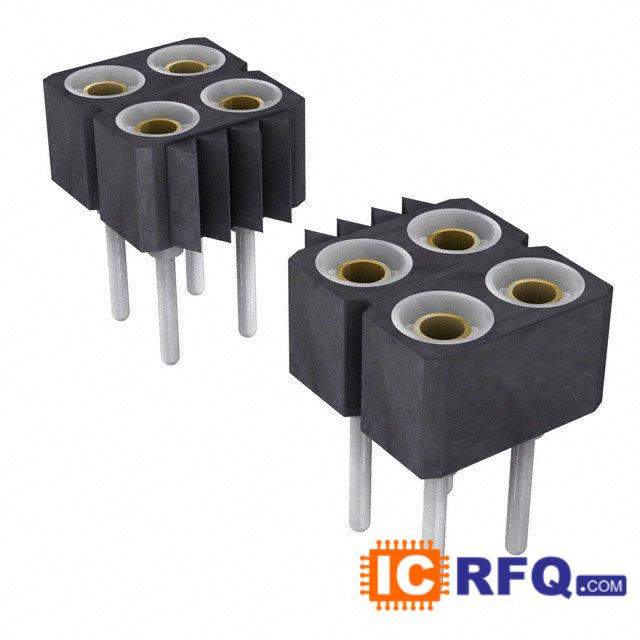

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | 0149-0-15-01-30-02-04-0 |
|---|---|
| Manufacturer | Mill-Max Manufacturing Corp. |
| Description | Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) Standard Tail Press-Fit |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| 0149-0-15-01-30-02-04-0 Price |  |
Technical Specifications of 0149-0-15-01-30-02-04-0
| Datasheet |  0149-0-15-01-30-02-04-0 datasheet |
|---|---|
| Category | Connectors, Interconnects |
| Family | Terminals - PC Pin Receptacles, Socket Connectors |
| Manufacturer | Mill-Max Manufacturing Corp. |
| Series | 0149 |
| Packaging | Bulk |
| Tail Type | Standard Tail |
| Termination | Press-Fit |
| Length - Overall | 0.474" (12.04mm) |
| Accepts Pin Diameter | 0.015" ~ 0.025" (0.38mm ~ 0.64mm) |
| Mounting Hole Diameter | 0.059" (1.50mm) |
| Pin Hole Diameter | 0.043" (1.09mm) |
| Flange Diameter | 0.072" (1.83mm) |
| Tail Diameter | 0.020" (0.51mm) |
| Socket Depth | 0.150" (3.81mm) |
| Contact Material | Beryllium Copper |
| Contact Finish | Tin-Lead |
| Contact Finish Thickness | 100μin (2.54μm) |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Board Thickness | - |
| Insertion Force | - |
