TPC6901(TE85L,F,M)
.jpg)

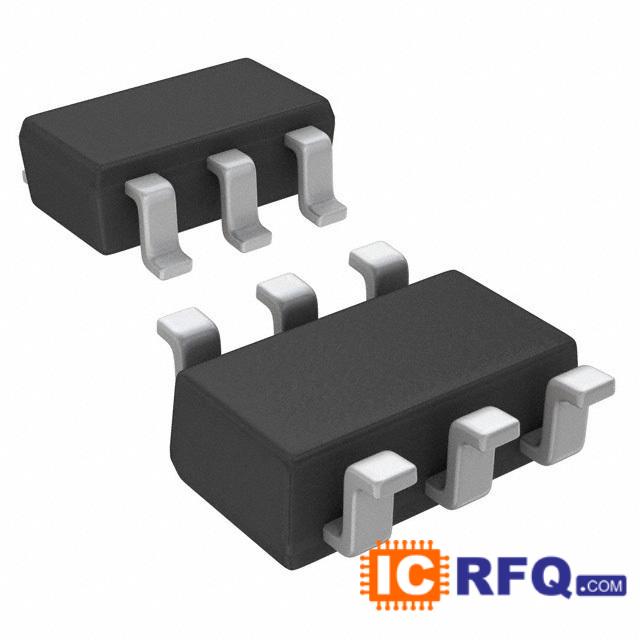

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | TPC6901(TE85L,F,M) |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | TRANS NPN/PNP 50V 6VS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| TPC6901(TE85L,F,M) Price |  |
Technical Specifications of TPC6901(TE85L,F,M)
| Category | Discrete Semiconductor Products |
|---|---|
| Family | Transistors - Bipolar (BJT) - Arrays |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Transistor Type | NPN, PNP |
| Current - Collector (Ic) (Max) | 1A, 700mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Vce Saturation (Max) @ Ib, Ic | 170mV @ 6mA, 300mA / 230mV @ 10mA, 300mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 400 @ 100mA, 2V / 200 @ 100mA, 2V |
| Power - Max | 400mW |
| Frequency - Transition | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | VS-6 (2.9x2.8) |
