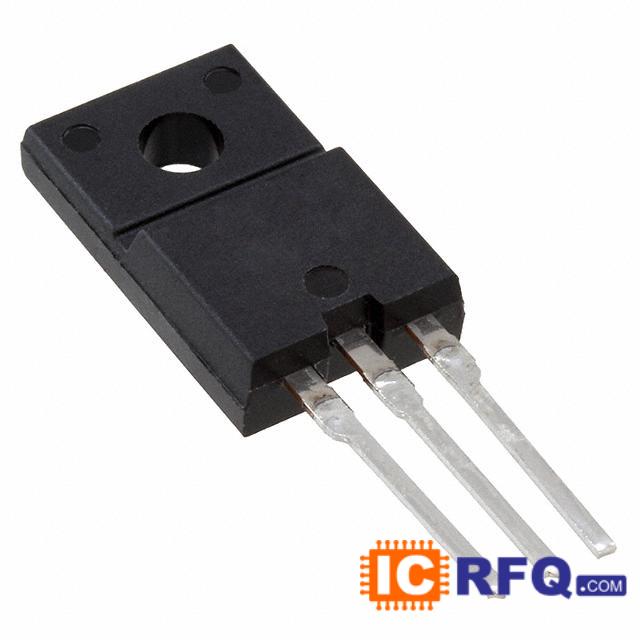

Technical Specifications of 2SD2141
| Datasheet |  2SD2141 datasheet |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Family | Transistors - Bipolar (BJT) - Single |
|---|
| Manufacturer | Sanken |
|---|
| Series | - |
|---|
| Packaging | Bulk |
|---|
| Transistor Type | NPN - Darlington |
|---|
| Current - Collector (Ic) (Max) | 6A |
|---|
| Voltage - Collector Emitter Breakdown (Max) | 380V |
|---|
| Vce Saturation (Max) @ Ib, Ic | 1.5V @ 20mA, 4A |
|---|
| Current - Collector Cutoff (Max) | 10μA (ICBO) |
|---|
| DC Current Gain (hFE) (Min) @ Ic, Vce | 1500 @ 3A, 2V |
|---|
| Power - Max | 35W |
|---|
| Frequency - Transition | 20MHz |
|---|
| Mounting Type | Through Hole |
|---|
| Package / Case | TO-220-3 Full Pack |
|---|
| Supplier Device Package | TO-220F |
|---|
We can supply Sanken part# 2SD2141. Use the request quote form to request 2SD2141 pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2SD2141. The price and lead time for 2SD2141 depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# 2SD2141. We look forward to doing business with you.
