Home > Products > Discrete Semiconductor > Transistors - FETs, MOSFETs - Single > IRLS3036-7PPBF

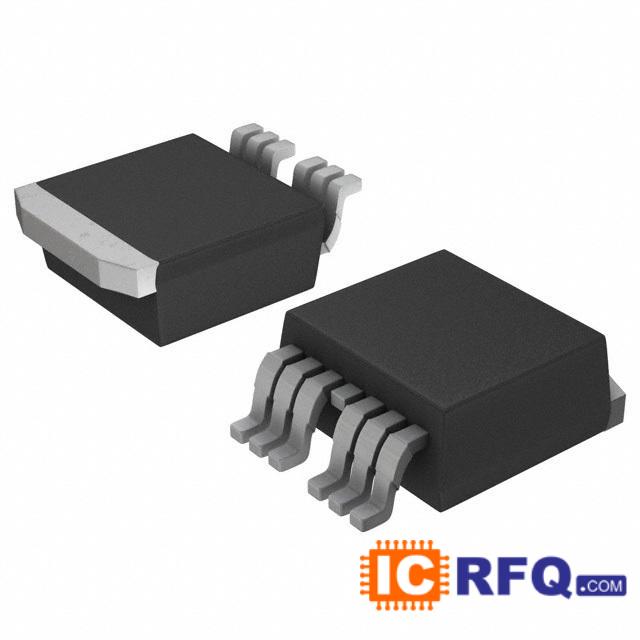

IRLS3036-7PPBF

Manufacturer Part Number IRLS3036-7PPBF
Manufacturer Infineon Technologies
Description MOSFET N-CH 60V 240A D2PAK
Lead Free Status / RoHS Status Lead free / RoHS Compliant
IRLS3036-7PPBF Price

Technical Specifications of IRLS3036-7PPBF

Datasheet IRLS3036-7PPBF datasheet
CategoryDiscrete Semiconductor Products
FamilyTransistors - FETs, MOSFETs - Single
ManufacturerInfineon Technologies
SeriesHEXFET?
PackagingTube
FET TypeMOSFET N-Channel, Metal Oxide
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)60V
Current - Continuous Drain (Id) @ 25°C240A (Tc)
Rds On (Max) @ Id, Vgs1.9 mOhm @ 180A, 10V
Vgs(th) (Max) @ Id2.5V @ 250μA
Gate Charge (Qg) @ Vgs160nC @ 4.5V
Input Capacitance (Ciss) @ Vds11270pF @ 50V
Power - Max380W
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-263-7, D2Pak (6 Leads + Tab), TO-263CB
Supplier Device PackageD2PAK (7-Lead)
<   Previous Product Next Product   >
Home > Products

Electronic Components and Parts

IRLS3036-7PPBF

Manufacturer Part Number IRLS3036-7PPBF
Manufacturer Infineon Technologies
Description MOSFET N-CH 60V 240A D2PAK
Lead Free Status / RoHS Status Lead free / RoHS Compliant
IRLS3036-7PPBF Price

Technical Specifications of IRLS3036-7PPBF

Datasheet IRLS3036-7PPBF datasheet
CategoryDiscrete Semiconductor Products
FamilyTransistors - FETs, MOSFETs - Single
ManufacturerInfineon Technologies
SeriesHEXFET?
PackagingTube
FET TypeMOSFET N-Channel, Metal Oxide
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)60V
Current - Continuous Drain (Id) @ 25°C240A (Tc)
Rds On (Max) @ Id, Vgs1.9 mOhm @ 180A, 10V
Vgs(th) (Max) @ Id2.5V @ 250μA
Gate Charge (Qg) @ Vgs160nC @ 4.5V
Input Capacitance (Ciss) @ Vds11270pF @ 50V
Power - Max380W
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-263-7, D2Pak (6 Leads + Tab), TO-263CB
Supplier Device PackageD2PAK (7-Lead)
We can supply Infineon Technologies part# IRLS3036-7PPBF. Use the request quote form to request IRLS3036-7PPBF pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRLS3036-7PPBF. The price and lead time for IRLS3036-7PPBF depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# IRLS3036-7PPBF. We look forward to doing business with you.
