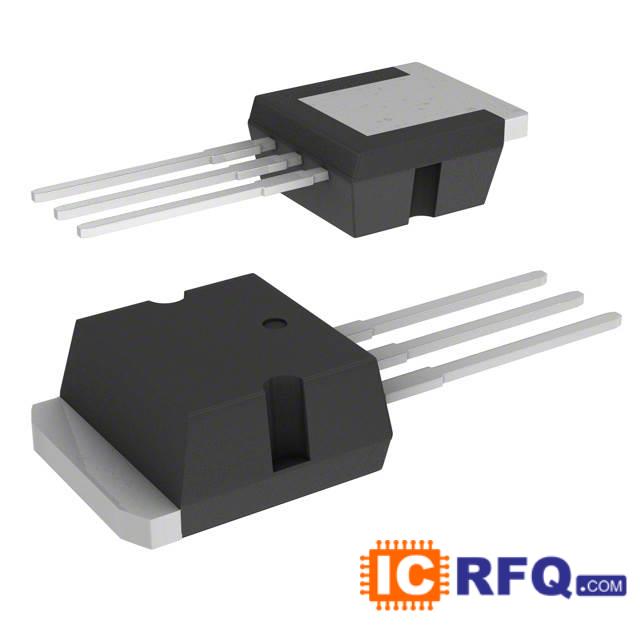

Technical Specifications of STB80NF55L-08-1
| Datasheet |  STB80NF55L-08-1 datasheet |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Family | Transistors - FETs, MOSFETs - Single |
|---|
| Manufacturer | STMicroelectronics |
|---|
| Series | STripFET? II |
|---|
| Packaging | Tube |
|---|
| FET Type | MOSFET N-Channel, Metal Oxide |
|---|
| FET Feature | Standard |
|---|
| Drain to Source Voltage (Vdss) | 55V |
|---|
| Current - Continuous Drain (Id) @ 25°C | 80A (Tc) |
|---|
| Rds On (Max) @ Id, Vgs | 8 mOhm @ 40A, 10V |
|---|
| Vgs(th) (Max) @ Id | 2.5V @ 250μA |
|---|
| Gate Charge (Qg) @ Vgs | 100nC @ 4.5V |
|---|
| Input Capacitance (Ciss) @ Vds | 4350pF @ 25V |
|---|
| Power - Max | 300W |
|---|
| Operating Temperature | 175°C (TJ) |
|---|
| Mounting Type | Through Hole |
|---|
| Package / Case | TO-262-3 Long Leads, I2Pak, TO-262AA |
|---|
| Supplier Device Package | I2PAK |
|---|
We can supply STMicroelectronics part# STB80NF55L-08-1. Use the request quote form to request STB80NF55L-08-1 pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STB80NF55L-08-1. The price and lead time for STB80NF55L-08-1 depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# STB80NF55L-08-1. We look forward to doing business with you.
