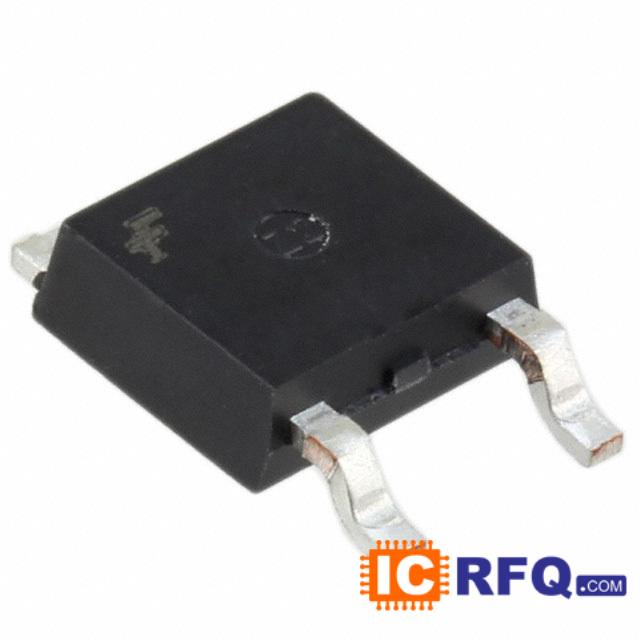

Technical Specifications of ISL9V3040D3ST
| Datasheet |  ISL9V3040D3ST datasheet |
|---|
| Category | Discrete Semiconductor Products |
|---|
| Family | Transistors - IGBTs - Single |
|---|
| Manufacturer | Fairchild Semiconductor |
|---|
| Series | EcoSPARK? |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| IGBT Type | - |
|---|
| Voltage - Collector Emitter Breakdown (Max) | 430V |
|---|
| Current - Collector (Ic) (Max) | 21A |
|---|
| Current - Collector Pulsed (Icm) | - |
|---|
| Vce(on) (Max) @ Vge, Ic | 1.6V @ 4V, 6A |
|---|
| Power - Max | 150W |
|---|
| Switching Energy | - |
|---|
| Input Type | Logic |
|---|
| Gate Charge | 17nC |
|---|
| Td (on/off) @ 25°C | -/4.8μs |
|---|
| Test Condition | 300V, 1 kOhm, 5V |
|---|
| Reverse Recovery Time (trr) | - |
|---|
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
|---|
| Mounting Type | Surface Mount |
|---|
| Supplier Device Package | TO-252AA |
|---|
We can supply Fairchild Semiconductor part# ISL9V3040D3ST. Use the request quote form to request ISL9V3040D3ST pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ISL9V3040D3ST. The price and lead time for ISL9V3040D3ST depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# ISL9V3040D3ST. We look forward to doing business with you.
