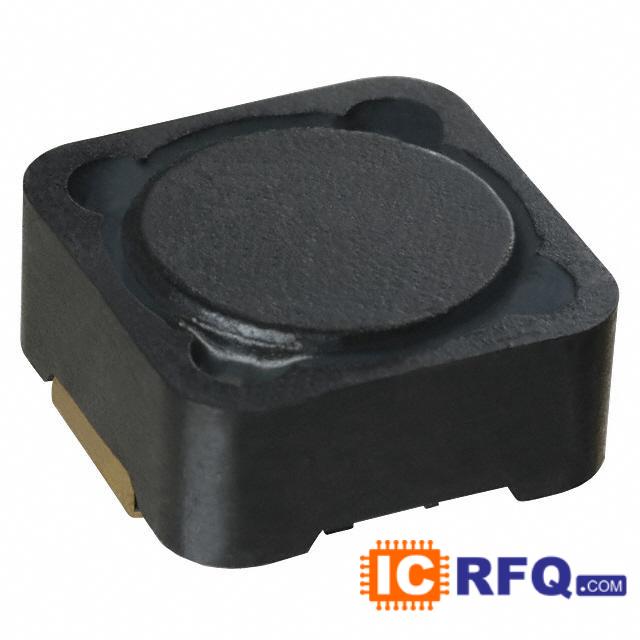

Technical Specifications of CLS5D11HPNP-100NC
| Datasheet |  CLS5D11HPNP-100NC datasheet |
|---|
| Category | Inductors, Coils, Chokes |
|---|
| Family | Fixed Inductors |
|---|
| Manufacturer | Sumida America Components Inc. |
|---|
| Series | CLS |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Part Status | Active |
|---|
| Type | - |
|---|
| Material - Core | - |
|---|
| Inductance | 10μH |
|---|
| Tolerance | ±30% |
|---|
| Current Rating | 750mA |
|---|
| Current - Saturation | 1A |
|---|
| Shielding | Shielded |
|---|
| DC Resistance (DCR) | 240 mOhm Max |
|---|
| Q @ Freq | - |
|---|
| Frequency - Self Resonant | - |
|---|
| Ratings | - |
|---|
| Operating Temperature | - |
|---|
| Frequency - Test | 100kHz |
|---|
| Mounting Type | Surface Mount |
|---|
| Package / Case | Nonstandard |
|---|
| Size / Dimension | 0.230" L x 0.230" W (5.85mm x 5.85mm) |
|---|
| Height - Seated (Max) | 0.047" (1.20mm) |
|---|
We can supply Sumida America Components Inc. part# CLS5D11HPNP-100NC. Use the request quote form to request CLS5D11HPNP-100NC pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CLS5D11HPNP-100NC. The price and lead time for CLS5D11HPNP-100NC depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# CLS5D11HPNP-100NC. We look forward to doing business with you.
