Everything You Need To Know About EPROM IC

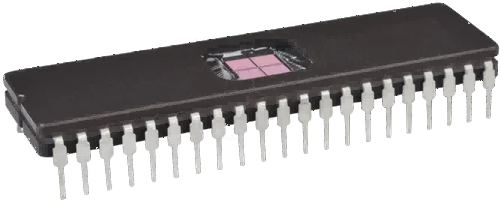

Image source Wikipedia

Different types of memory technologies are found in electronic devices. EPROM (erasable programmable read-only memory) is one of them.

This is a type of memory that does not lose data when the device is turned off, or when the power supply to the device is cut off.

In other words, it is a non-volatile memory.

 Invented by an Israeli engineer Don Frohman, EPROM is a group of floating gate transistors that are programmed to hold different types of data.

The fact that they are erasable means that you can wipe out data that is on the chip. This is done by exposing the chip to a strong ultraviolet light.

You can easily identify EPROM through a transparent window that is at the top of its package. This is the window that allows erasure of the data when exposed to the UV.

 History of EPROM

EPROM blasted into the world of electronics in 1971. It was developed in Intel by engineer Dov Frohman.

 The invention of the EPROM was based on the idea that a floating gate of a MOSFET can be used as a data cell for read-only memory.

 From this idea, the engineer was able to build the first-ever EPROM IC, which was known as the Intel 1702.

 This EPROM chip had a data capacity of 256 bits.

 From the first EPROM, other players got into the game.

Computer manufacturers started using EPROMs to design and build BIOS chips.

 Manufacturers covered the erasing windows for data protection purposes with an adhesive foil-backed label. This cover shielded the semiconductor modules from the UV rays.

In the early days of their invention, EPROM ICs were mainly used for storing lookup tables for different applications. In such tables the input and output values of data sets were well-known.

How does EPROM IC work?

To understand how EPROM works, let’s first look at the components that make up this memory chip.

 A typical EPROM consists of memory cells, address decoders, control data lines, and output buffers.

 Memory cells are used for storing data, which is in the form of electric charges.

 A control logic line is used for managing and controlling all the operations in the memory chip. These operations include reading, writing, and erasing data. Output buffers amplify the output signals for easy communication with other devices.

 When it comes to EPROM operations, a plain EPROM does not contain any data. It should be exposed to ultraviolet light to be programmed. The same applies when you want to erase data that is in the chip.

 Exposure to the UV rays for a defined period neutralizes the electric charge that is stored in the EPROM.

 Keep in mind that data in this chip is stored in the form of electric charges and represented in binary bits. Allowing electric current to flow through the chip makes it possible to read the data.

 Types of EPROM ICs

There are two main types of erasable programmable read-only memory chips. These are  UV-EPROM and One-time programmable EPROM.

 What is the difference between these two?

 UV-EPROM  derives its name from the fact that data can be erased from the module only when you shine UV light through its in-built window. It also has a mechanism that shields the stored data from loss due to exposure to UV light.

 The chip can store data for more than 20 years. Additionally, it is built to support multiple read cycles.

One-time programmable (OTP) EPROM  has the same structure as the UV-EPROM only that they don’t have the UV window. This implies that they are not readily erasable by the UV rays. Instead, data on these EPROM chips can be erased by the X-rays.

Features of EPROM

Here are some of the most common features of EPROM:

· Can be erased and written repeatedly

· An EPROM package has a transparent window that allows you to see straight inside the integrated circuit. The window makes it possible to erase data on the chip

· Can store data for up to 20 years

· Solid build enhances the reliability of the chip

· Quite affordable, especially in comparison to most alternative memory modules

· Is a non-volatile memory

Advantages of EPROM ICs?

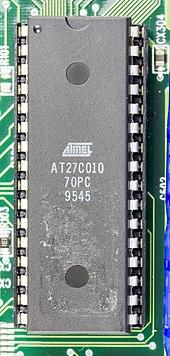

Image source Indiamart

Why are the EPROM ICs so popular?

There are many reasons why EPROM chips have been and are still a force to reckon with in the world of electronics.

 First, they are cheap. The simple and compact design of EPROM makes it easy for manufacturers to produce these chips in large quantities.

 EPROM chips are quite flexible. This is mainly because they are reprogrammable. You can modify, edit, and delete data on the chips multiple times. This makes these chips suitable for different application areas.

Data integrity is another advantage of using EPROM IC. Being a non-volatile memory chip, data, it can store data for long periods unless you decide to change or delete it. You don’t have to worry about cases of unexpected data loss.

What are the limitations of EPROM?

The biggest limitation of EOROM  IC is it relies on UV light to erase data. This technique is quite cumbersome and not convenient for ordinary users.

Most people don’t have access to the UV erasers that are used for erasing data on the EPROM modules.

Still, on the data erasion, it is difficult to erase only specific data from the memory module.  You will have to wipe out the entire data on the semiconductor chip. This is quite a difficult job especially when you want to retain some data on the memory chip.

 Power consumption is another drawback associated with EPROM, especially when we compare it to alternative memory solutions. Being products of old technology, EPROM ICs tend to be heavy consumers of electric energy.

Applications of EPROM

For years, on-chip EPROM ICs have been used for storing small programs, data, and instructions on the older microcontrollers.

Most of these microcontrollers were mainly used for developing computer programs.

The same applies to old PCs and even video gaming devices. They also relied on the on-chip EPROMs.

 However, in recent years, EPROM memory technology has been phased out by the EEPROM. This is an electrically programmable version of EPROM. This means that it is more convenient to use. It is also faster and more reliable.

Comparing EPROM vs EEPROM vs Flash Memory

EPROM, EEPROM, and Flash Memory are chips that are widely used in electronic devices and applications.

 What is the difference between them?

EPROM was developed to improve ROM and PROM. They came into the electronic sphere to improve the flexibility of data operations.

30 years later, EPROM was replaced by EEPROM and flash memory. Chips.

While EPROM  improved the flexibility of data operations, there was a dire need to make things easier beyond the use of UV light. This is where EEPROM came in.

 EEPROM is always considered an improved or updated version of EPROM. The extra “E”  makes the whole difference.

With EPROM, data is electrically erasable. This means that you don’t have to rely on UV light to modify and erase data from the memory module. Simply connect the chip to a high-voltage power source and your data will be erased.

 From this comparison, it means that EEPROM chis use more power than EPROM.

 The convenience of erasing and programming EEPROM electrically is the main reason behind their popularity. Most modern electronic devices have EEPROM and flash memory chips.

Flash memory is another option that you should consider as an alternative to the EPROM IC. They are also used for data storage in electronic devices and appliances.

  A key feature that separates flash memory from both EEPROM and EPROM is it can only write and erase 1 byte of data at a time. The other two memory chips are designed to allow handling of multiple bytes at a time.

 In short, EPROM and EEPROM are faster than flash memory. This is because, with a multibyte operation, you can write or erase an entire memory chip in a single operation.

 A notable advantage that comes with flash memory is to an extent, they are cushioned from constant damage. This mainly stems from the fact that read and write operations are gentle.

FAQs about EPROM

 How long can an EPROM store data?

 A programmed EPROM can store data for up to more than 20 years.

The difference in the data storage period is caused by many factors. Among these is the quality of EPROM and also usage.

When exposed to the right conditions, you should expect that the EPROM will store data for long.

The unique feature of EPROM allows them to store data even after power has been turned off.

 How do I erase data on  EPROM?

 As we have already stated, UV light is the main component that is used for erasing data on EPROM.

 It has the full capacity to clear all the data on the EPROM, making it ready for another session of programming.

 The UV light is focused on the quartz crystal window that is positioned right at the top of the EPROM  IC.

Since this window is transparent, it will allow all the light rays to go through it and hit the semiconductor surface of the chip.

 This will eventually erase the data.

Can EPROM be erased only once?

 There is no limit on the number of times that you can erase EPROM.

Since this is a non-volatile memory, you are allowed to erase it as many times as you want.

How long does it take to erase EPROM?

Erasing data from EPROM is a simple activity that can take between 10-20 minutes and the job will be done.

The period will depend on the type of eraser that you are using for executing this job.

Powerful EPROM erasers are designed to do this job fast.

 The good news is there are many such erasers in the market and you can easily find a perfect eraser for the job.

Can EPROM be erased electronically?

 You can write and erase data on EPROM using ultraviolet light.

 It is impossible to erase EPROM electronically.

 Is EPROM permanent or not?

 EPROM is a non-volatile memory. This means that data can be written and erased when needed.

This memory module can store data even when there is no power supply.

When it comes to data storage, EPROM will continue storing data for as long as you want unless you want to remove it.

 What is an example of EPROM?

Common examples of EPRM include memory sticks and compact flash.

 These are small memory modules that are used on most electronic devices. Their usage extends way beyond computers.

What wavelength does EPROM erase?

As we have mentioned, you can only erase EPROM IC by exposing it to UV light.

However, the process entails more than just exposure. The UV light must meet a particular threshold.

To erase, EPROM, you should use a UV wavelength of 253.7nm.  Furthermore, the exposure levels should be 4000uWsq cm.  This exposure should last for up to 15 minutes.

Conclusion

 I hope this guide will give you valuable information about EPROM. It is a special non-volatile memory that has a wide range of applications in the modern world of technology.

If you are a designer or manufacturer of electronic products, you should consider incorporating EPROM into your product line.

Using this information, you can appreciate the importance of EPROM in your application. You should proceed to implement the solutions that will incorporate the use of EPROMs.

One of the key factors that will determine the success of your product is the quality of EPROM that you embed into the products.

 Ensure that you buy premium-grade EPROM chips that will guarantee the performance and reliability of your project.
