What is a 10k ohm resistor color code?

Which is the best resistor for my application? One of the most viable options you should consider is a 10k ohm resistor. Obviously, from your circuit design process, you have already decided that a 10k Ohm resistor is the right one for you.

Once you decide, the next step is to find all the necessary information about this resistor. This is where as experts in the electronics industry we come in. Our primary goal is to give you all the vital information that you should know about these resistors.

One of the key properties that you should know is the 10k ohm resistor color codes. You should know what each color band on the resistor stands for. In this article, we will discuss everything you should know about 10k ohm resistors.

Overview of  a 10k Ohm resistor

With many different resistors in the market, you have decided to go for a 10,000 Ohms resistor. This is mainly motivated by the fact that the rating is perfectly suitable for your application or circuit.

Like other resistors, 10k Ohm resistors are designed to limit the flow of current in an electric circuit. For you to need 10,000  ohms of resistance, then it means that the circuit must be quite powerful. In other words, a significant electric current must be going through the circuit.

With the right 10k Ohm resistor, you will be able to achieve the level of resistance that you need. It is important to verify and ensure that your resistors are of the exact resistors as indicated by the manufacturer. This is where the importance of resistor color code comes in.

Understanding the resistor color code

The core function of the 10k resistor color code is to help buyers and users get the real resistance value of their resistors. If you are into the technical aspects of the electronics, you don’t always have to rely on what the manufacturer printed on the surface of the resistor. The color code adheres to the IEC60062, a globally recognized standard code.

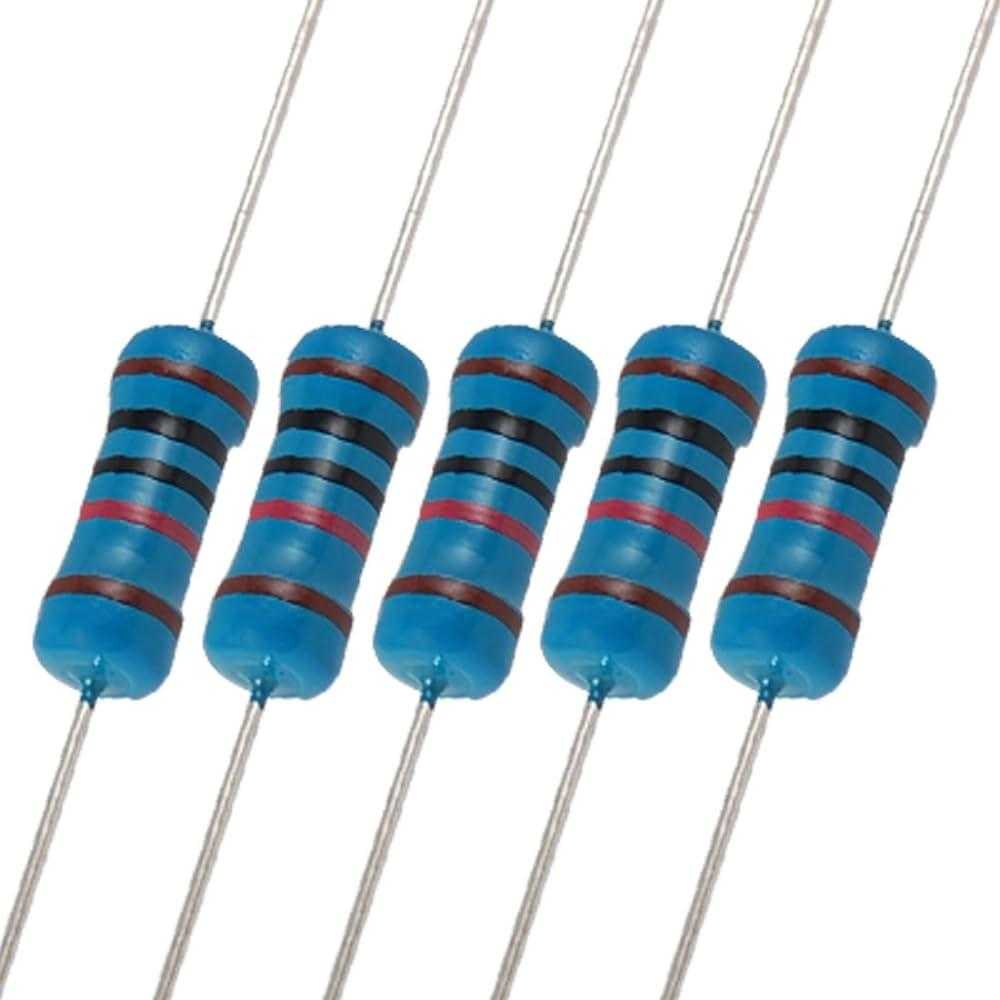

The image below illustrates a sample of the 10K Ohm resistor that has different color bands on its surface.

Like most resistors, 10k ohm resistors come in a different number of bands. While most have four color bands, others have five. Each band represents a particular value.

As you can see from the image above, the first band is brown and represents the first value of the resistor which is 1.

The second band is black and stands for the second value of the 10k resistor, which is 0.

The third color band is the multiplier. In the case of our 10K ohms resistor, the multiplier has a value of 1000.  You will multiply it with the value of the first two bands to get the total resistance value.

 The fourth band represents the tolerance value of the 10k resistor. It is usually ±5% You will add this tolerance to the total value of the resistance that you would have obtained from the other bands.  This means 10K  ±5% ohms

How to read 10k ohm resistor color code

 Knowing the color bands is one thing and reading them is another. So, how do I comfortably read the color code of my 10k ohm resistor?

 Here are some of the hints that you should use when  it comes to reading the 10k ohm resistor color code:

· Identify the band grouping: Color bands in most 10k resistors are not spaced equally You should be able to notice gaps between the bands. The largest gap is usually right before the tolerance band. You can position this band to the left side the start reading other bands from the left to the right side of the resistor.

· Take note of the resistor’s tolerance. It is used for giving the tolerance value of the resistor and in most cases it is either 5% or 10%. This band can either be gold or silver You should also read the tolerance marker from left to right.

· Starting band: This is the band that is closest to one end of a 10k ohm resistor.  This is the band that will give you the first value of your resistor which is 1.

Once you master the art of reading the 10k ohm resistor color code, you will find no need to use measuring instruments such as a multimeter to verify the resistance value.

In case you are unsure about the color bands and their values, you are free to get references from various sources such as resistor color code calculators online.

Tips for buying 10k ohm resistors

Once you have all the technical details about the 10k ohm resistor, the next step entails making the actual purchase.  However, the sensitivity of this process implies that you need to be extra careful with each step that you make. Do not be in a rush to buy as you may easily end up with the wrong product.

Start by confirming the quality of the resistors that you want to buy. Ensure that they are well designed and constructed.  For instance, the coating of the resistor should be well-polished, and devoid of any scratches and dirt.

Inquire if the resistor has any physical protection mechanisms such as anti-moisture and anti-dust elements. This is quite vital especially if you intend to use the device in an outdoor setup, or any other application that will expose the resistors to natural elements.

Buying 10k ohm resistors is also one of the tips that will guarantee you better pricing for the products. Talk to your supplier or distributor and there is a high chance that you will end up with affordable resistors for sale.

Conclusion

I hope that with this guide, you are well-equipped with all the right information about the 10k ohm resistor color code. You will use the color code to interpret the actual value of your resistor. Once everything is set, you can proceed with the purchase.

In case you want to buy 10k resistors in China consider choosing ICRFQ. We are a global supplier of resistors. You can contact us in case you want 10k ohm resistors wholesale.
