What is a Neutral Grounding Resistor?

Image source Mining.com

Are your electronic systems and components safe? This is one of the things that you should ask when you are working on any electronic project, regardless of its magnitude. Different e devices and components are used to enhance the safety levels of electronic applications. Neutral Grounding Resistors (NGRs) are definitely among the components.

 Placed between the neutral and ground power systems, these components play an important role in providing the required ground fault protection in an electric system.

Are you planning to buy a neutral grounding resistor for your electronic project? This is a perfect guide for you. In this article, we are going to cover all that you should know about Neutral Grounding Resistors. You will learn what these resistors are, how they work, and why you should buy them. You will also get a few tips on how to buy the best neutral grounding resistors for your application.

What is a Neutral Grounding Resistor?

Also known as Neutral Earthing Resistor or Earth Fault Resistor, A Neural Grounding Resistor is a unique type of resistor that is inserted between the neutral point of a power system, such as a motor or generator- and the ground. The main function of this resistor is to utilize its resistance property to provide the much-required ground fault protection to an electronic application.

NGRs provide the required protection by limiting the current that usually flows in the neutral cables or line in case of a ground fault condition in a power system or application.

 To understand the relevance of NGR, you have to be aware of the existence of ground faults in electric power systems.  A ground fault occurs when electric current unintentionally flows directly to the ground without passing through the existing wiring system.

The fault can occur when the hot wire of your application makes direct contact with the grounding wire or just a small portion of the grounding system. When this happens, it poses a major risk to the people working near the devices as they can be affected by electric shock. The fault can also affect the device or appliance.

Since NGR is a resistor, it will offer some level of resistance to this current hence limiting the severity of the problem. The resistance will reduce the current that is generated due to ground fault hence you will not have to be worried about the safety risks. Otherwise, without any protection system or mechanism, high levels of current will find ways to the ground and cause severe damage.

How does a neutral grounding resistor work?

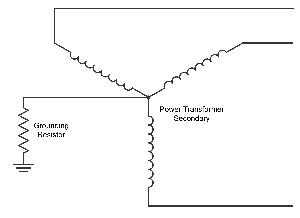

As we have stated, this resistor is strategically positioned between the neutral and the grounding points of a power system. It is from that point that the component can provide much-needed protection in case of a ground fault.

The working mechanism of a neutral grounding resistor is based on Ohm’s law which establishes the relationship between electric current and potential difference. The electric current that is passing through different points of a conductor must be directly proportional to the potential difference across those two points while at the same time is inversely proportional to the resistance between these two points.

In the care of NGR, the current and voltage are between the grounding connection and the neutral point of the system.  The NGR is connected between these two points, from where it will execute its mandated role.

To understand the working mechanism of this resistor, we have to identify all the possible scenarios under which an electric device or application operates about the NGR.

The first scenario is when the device or application is operating under normal conditions. Here, no current will flow through the NGR. This is because there is no potential difference between the ground and neutral points.

 The second scenario is when there is a ground fault condition. This occurs when there is a direct connection between the power line and the ground connection. A potential difference will be created from this connection and electric current will start flowing from that point of fault to the ground section.

It is in this scenario that the importance of NGR comes in handy. It exerts resistance to the flow of electric current on the grounding connection. Given Ohm’s law, an increase in resistance level will decrease the current and even voltage. This means that power on the grounding connection will be limited.

 The controlled current flow has a direct impact on the safety levels. Since we know that high electric current will cause serious damage and as well as be a safety risk, the regulated current will have minimal impact on components and even human beings.

Regular monitoring and maintenance of NGR

It is not enough to buy and install NGR onto its respective application area. You need to closely monitor its operation and even implement regular maintenance practices.

Throughout use, NGRs are exposed to various forces such as mechanical forces and extreme temperatures.

These forces can degrade the quality of the resistor, a factor that will affect its performance, operation, and reliability.

Given the importance of NGR in any electronic system or application, you wouldn’t want to play around with a faulty or damaged system

Ensure that you check this resistor regularly and implement corrective measures in case you discover any fault. If the resistor is damaged, you should consider buying a new NGR from a reputable supplier.

Buying the best NGR

Safety is always prioritized when dealing with electronic devices, systems, and applications. Given the sensitive role of NGR, you should ensure that you get one that meets the highest levels of quality.

You can use several parameters to determine the quality and suitability of NGR in your application.

One of the key parameters is the system voltage. Ensure that the power rating of the NGR matches your system voltage and also the desired fault current.

The design and construction of the NGR matters. Ensure that it is built of quality materials and features robust design for performance, durability, and reliability.

Once you are sure of everything, you can proceed to contact ICRFQ and place your orders for the best neutral grounding resistors for sale in China.
