Technical Specifications of A9CAG-1004F
| Datasheet |  A9CAG-1004F datasheet |
|---|
| Product Photos | A9CAx-100xx |
|---|
| Catalog Drawings | A9CAG Assembly Pin Out |
|---|
| Standard Package | 1 |
|---|
| Category | Cable Assemblies |
|---|

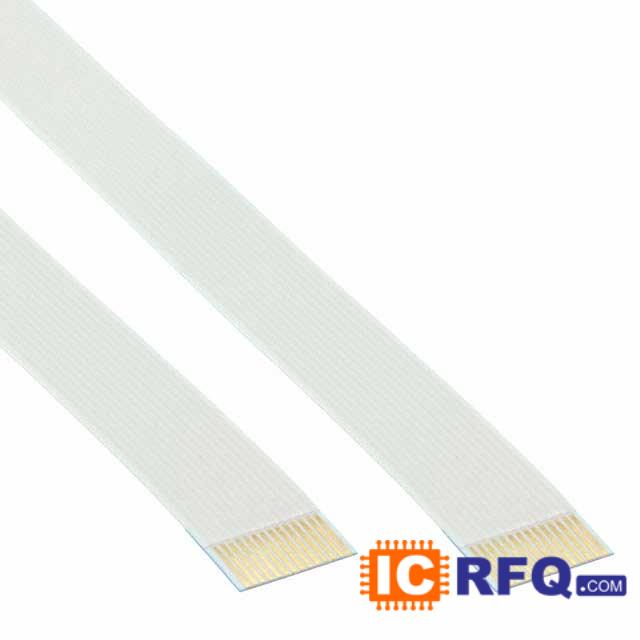

| Family | Flat Flex Cables (FFC, FPC) |
|---|
| Series | - |
|---|
| Contact Termination | Receptacle with Latch to Solder Tab |
|---|
| Length | 4.0" (101.6mm) |
|---|
| Number of Positions | 10 |
|---|
| Pitch | 0.100" (2.54mm) |
|---|
| Online Catalog | Flex Cable |
|---|
| Assembly Component | (1) 487526-9-ND - CONN FFC RCPT HSG 10POS 2.54MM (10) 1-88997-2-ND - CONN CONTACT SLDR TAB FLAT FLEX (10) 2-487406-2-ND - CONN SOCKET FLEXFLAT .100 15GOLD (1) AF10-500-ND - CABLE FLAT FLEX 10COND 0.100" |
|---|
| Alternate Length | A9CAG-1002F-ND - FLEX CABLE - AFG10G/AF10/AFE10T A9CAG-1003F-ND - FLEX CABLE - AFG10G/AF10/AFE10T A9CAG-1005F-ND - FLEX CABLE - AFG10G/AF10/AFE10T A9CAG-1006F-ND - FLEX CABLE - AFG10G/AF10/AFE10T A9CAG-1008F-ND - FLEX CABLE - AFG10G/AF10/AFE10T |
|---|
We can supply TE Connectivity AMP Connectors part# A9CAG-1004F. Use the request quote form to request A9CAG-1004F pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number A9CAG-1004F. The price and lead time for A9CAG-1004F depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# A9CAG-1004F. We look forward to doing business with you.
