Technical Specifications of ECP-U1C105MA5
| Datasheet |  ECP-U1C105MA5 datasheet |
|---|

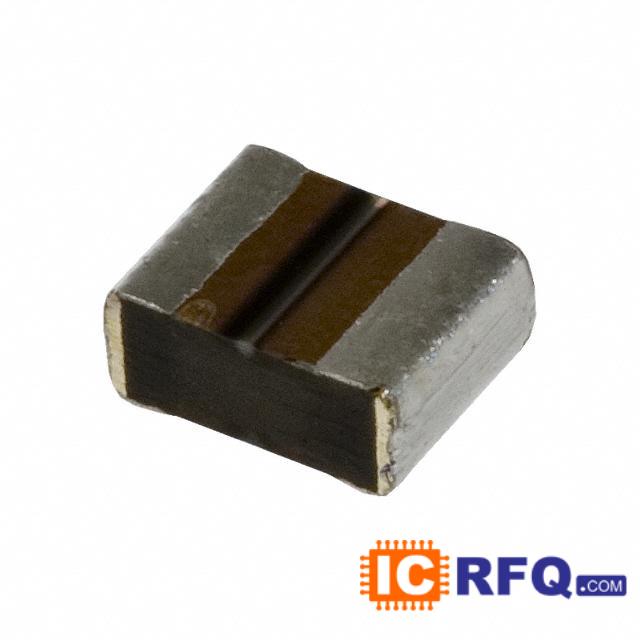

| Product Photos | ECP-U1C105MA5 |
|---|
| Catalog Drawings | ECP-U SeriesECP-U Series Footprint |
|---|
| PCN Packaging | ECW-U, ECP-U Series 11/Apr/2013 |
|---|
| EDA / CAD Models | Download from Accelerated Designs |
|---|
| Standard Package | 2,000 |
|---|
| Category | Capacitors |
|---|
| Family | Film Capacitors |
|---|
| Series | ECP-U(A) |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Capacitance | 1μF |
|---|
| Tolerance | ±20% |
|---|
| Voltage Rating - AC | - |
|---|
| Voltage Rating - DC | 16V |
|---|
| Dielectric Material | Acrylic, Metallized - Stacked |
|---|
| ESR (Equivalent Series Resistance) | - |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Mounting Type | Surface Mount |
|---|
| Package / Case | 1210 (3225 Metric) |
|---|
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
|---|
| Height - Seated (Max) | 0.063" (1.60mm) |
|---|
| Termination | Solder Pads |
|---|
| Lead Spacing | - |
|---|
| Applications | EMI, RFI Suppression |
|---|
| Features | Low ESR |
|---|
| Online Catalog | ECP-U(A) Series |
|---|
| Other Names | ECPU1C105MA5 PCF1132TR |
|---|
We can supply Panasonic Electronic Components part# ECP-U1C105MA5. Use the request quote form to request ECP-U1C105MA5 pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ECP-U1C105MA5. The price and lead time for ECP-U1C105MA5 depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# ECP-U1C105MA5. We look forward to doing business with you.
