| Datasheet |  39602000440 datasheet |
|---|

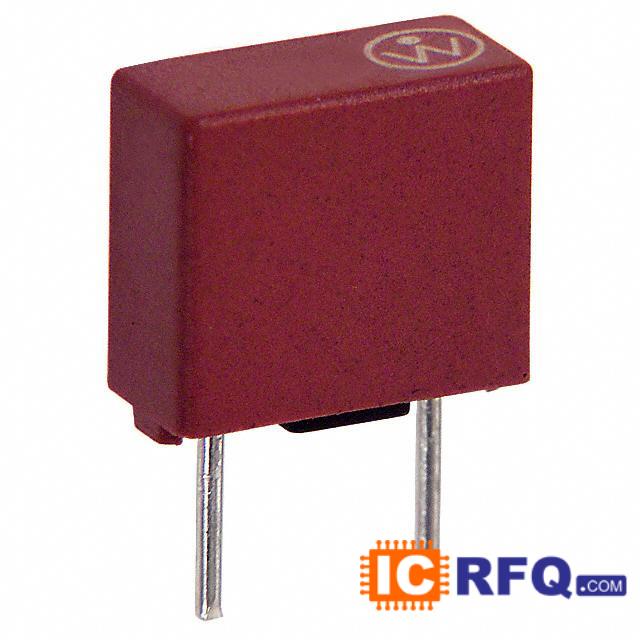

| Product Photos | TIP385, TE395, 396, 397 Series Short |
|---|
| Product Training Modules | Fuseology - Introduction to Fuses |
|---|
| Catalog Drawings | 395,396 Series Short Leads |
|---|
| EDA / CAD Models | Download from Accelerated Designs |
|---|
| Standard Package | 1,400 |
|---|
| Category | Circuit Protection |
|---|
| Family | Fuses |
|---|
| Series | TE5? 396 |
|---|
| Packaging | Bulk |
|---|
| Fuse Type | Board Mount (Cartridge Style Excluded) |
|---|
| Current Rating | 200mA |
|---|
| Voltage Rating - AC | 125V |
|---|
| Voltage Rating - DC | - |
|---|
| Response Time | Slow |
|---|
| Package / Case | Radial, Box |
|---|
| Mounting Type | Through Hole |
|---|
| Breaking Capacity @ Rated Voltage | 100A |
|---|
| Melting I2t | 0.14 |
|---|
| Approvals | cUL, UL |
|---|
| Operating Temperature | -40°C ~ 85°C |
|---|
| Color | - |
|---|
| Size / Dimension | 0.335" L x 0.157" W x 0.315" H (8.50mm x 4.00mm x 8.00mm) |
|---|
| DC Cold Resistance | 1.2 Ohm |
|---|
| Online Catalog | TE5? 396 Series |
|---|
| Kits | WK0117-KIT-ND - KIT FUSE TE5 125V UL |
|---|
| Associated Product | WK0010TR-ND - FUSE HOLDER RADIAL 250V 6.3A SMD WK0010CT-ND - FUSE HOLDER RADIAL 250V 6.3A SMD WK0010DKR-ND - FUSE HOLDER RADIAL 250V 6.3A SMD WK0009-ND - FUSE HOLDER RADIAL 250V 6.3A PCB |
|---|
| Other Names | 19396-034-K 3960200044 WK4434BK |
|---|
