Technical Specifications of SMAT70A-13-F
| Datasheet |  SMAT70A-13-F datasheet |
|---|

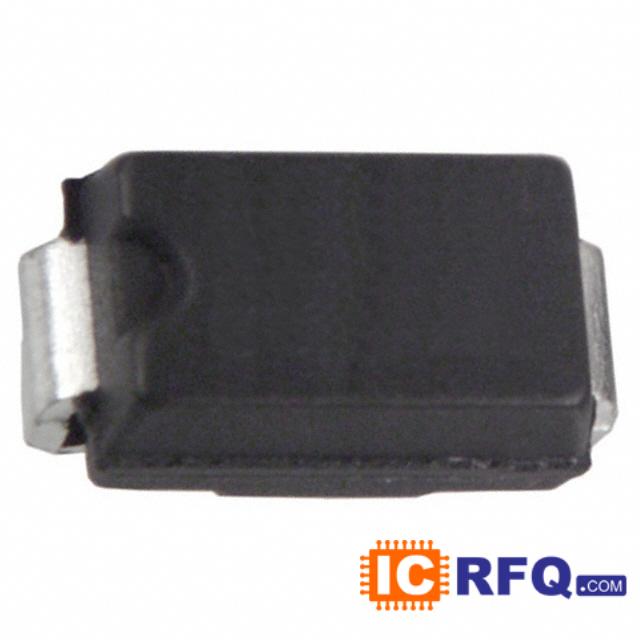

| Product Photos | DO-214AC, SMA (Unidirectional)SMA |
|---|
| RoHS Information | RoHS Cert of Compliance |
|---|
| Catalog Drawings | SMAT70A-13-F TopSMAT70A-13-F Side |
|---|
| PCN Assembly/Origin | Assembly Process Chg 11/Mar/2016 |
|---|
| Standard Package | 5,000 |
|---|
| Category | Circuit Protection |
|---|
| Family | TVS - Diodes |
|---|
| Series | Automotive, AEC-Q101 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Type | Zener |
|---|
| Unidirectional Channels | 1 |
|---|
| Bidirectional Channels | - |
|---|
| Voltage - Reverse Standoff (Typ) | 70V |
|---|
| Voltage - Breakdown (Min) | 77.8V |
|---|
| Voltage - Clamping (Max) @ Ipp | 100V |
|---|
| Current - Peak Pulse (10/1000μs) | 3.5A |
|---|
| Power - Peak Pulse | 400W |
|---|
| Power Line Protection | No |
|---|
| Applications | Automotive |
|---|
| Capacitance @ Frequency | 140pF @ 1MHz |
|---|
| Operating Temperature | -55°C ~ 150°C (TJ) |
|---|
| Mounting Type | Surface Mount |
|---|
| Package / Case | DO-214AC, SMA |
|---|
| Supplier Device Package | SMA |
|---|
| Online Catalog | SMAT70A Series |
|---|
| Other Names | SMAT70A-FDITR SMAT70A13F |
|---|
We can supply Diodes Incorporated part# SMAT70A-13-F. Use the request quote form to request SMAT70A-13-F pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SMAT70A-13-F. The price and lead time for SMAT70A-13-F depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# SMAT70A-13-F. We look forward to doing business with you.
