Technical Specifications of 1SMB11CAT3G
| Datasheet |  1SMB11CAT3G datasheet |
|---|

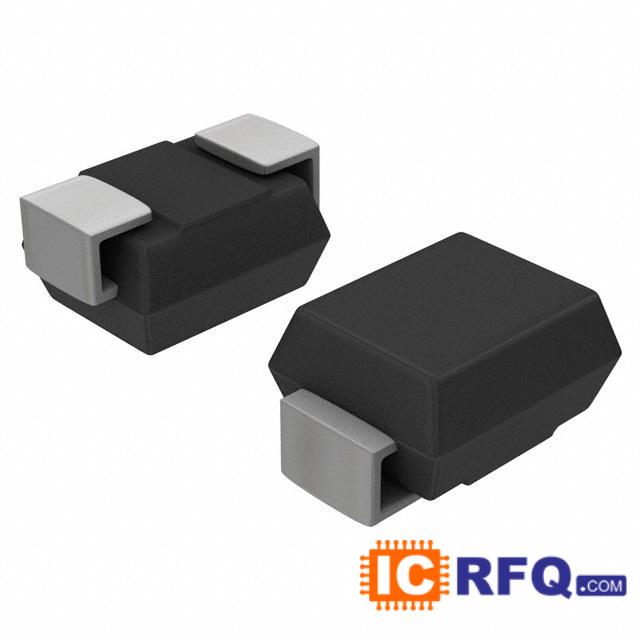

| Product Photos | DO-214AA, SMB403C |
|---|
| PCN Assembly/Origin | Assembly/Test Transfer 06/Jul/2015 |
|---|
| Standard Package | 2,500 |
|---|
| Category | Circuit Protection |
|---|
| Family | TVS - Diodes |
|---|
| Series | Automotive, AEC-Q101 |
|---|
| Packaging | Tape & Reel (TR) |
|---|
| Type | Zener |
|---|
| Unidirectional Channels | - |
|---|
| Bidirectional Channels | 1 |
|---|
| Voltage - Reverse Standoff (Typ) | 11V |
|---|
| Voltage - Breakdown (Min) | 12.2V |
|---|
| Voltage - Clamping (Max) @ Ipp | 18.2V |
|---|
| Current - Peak Pulse (10/1000μs) | 33A |
|---|
| Power - Peak Pulse | 600W |
|---|
| Power Line Protection | No |
|---|
| Applications | Automotive |
|---|
| Capacitance @ Frequency | 740pF @ 1MHz |
|---|
| Operating Temperature | -65°C ~ 150°C (TJ) |
|---|
| Mounting Type | Surface Mount |
|---|
| Package / Case | DO-214AA, SMB |
|---|
| Supplier Device Package | SMB |
|---|
| Online Catalog | Automotive, AEC-Q101 SMB Series |
|---|
| Other Names | 1SMB11CAT3G-ND 1SMB11CAT3GOSTR |
|---|
We can supply ON Semiconductor part# 1SMB11CAT3G. Use the request quote form to request 1SMB11CAT3G pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 1SMB11CAT3G. The price and lead time for 1SMB11CAT3G depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# 1SMB11CAT3G. We look forward to doing business with you.
