HM-S176D1-8AP1-TG30

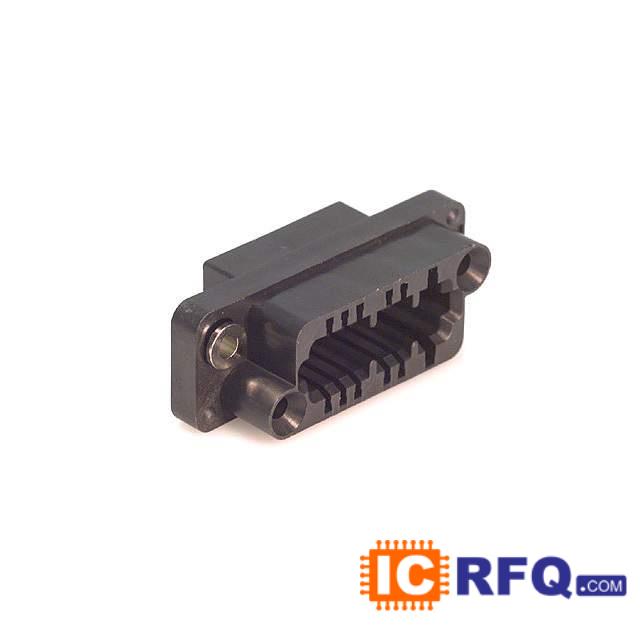

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | HM-S176D1-8AP1-TG30 |
|---|---|
| Manufacturer | 3M |
| Description | CONN SOCKET HM 176POS 8ROW RA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| HM-S176D1-8AP1-TG30 Price |  |
Technical Specifications of HM-S176D1-8AP1-TG30
| Datasheet |  HM-S176D1-8AP1-TG30 datasheet |
|---|---|
| Product Photos | HM-S176D1-8AP1-TG30 |
| PCN Design/Specification | HM and UHM Color 7/Jul/2010 |
| Standard Package | 230 |
| Category | Connectors, Interconnects |
| Family | Backplane Connectors - Hard Metric, Standard |
| Series | MetPak? HM |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Connector Style | D 22 |
| Number of Positions | 176 |
| Number of Positions Loaded | All |
| Pitch | 0.079" (2.00mm) |
| Number of Rows | 8 |
| Mounting Type | Through Hole, Right Angle |
| Termination | Press-Fit |
| Connector Usage | - |
| Contact Finish | Gold |
| Contact Finish Thickness | 30μin (0.76μm) |
| Current Rating | 1A |
| Voltage Rating | - |
| Operating Temperature | -55°C ~ 125°C |
| Features | - |
| Other Names | 15021584709 5111157059 51111570593 70010023219 HMS176D18AP1TG30 |
