MP2-P210-51M1-TR30

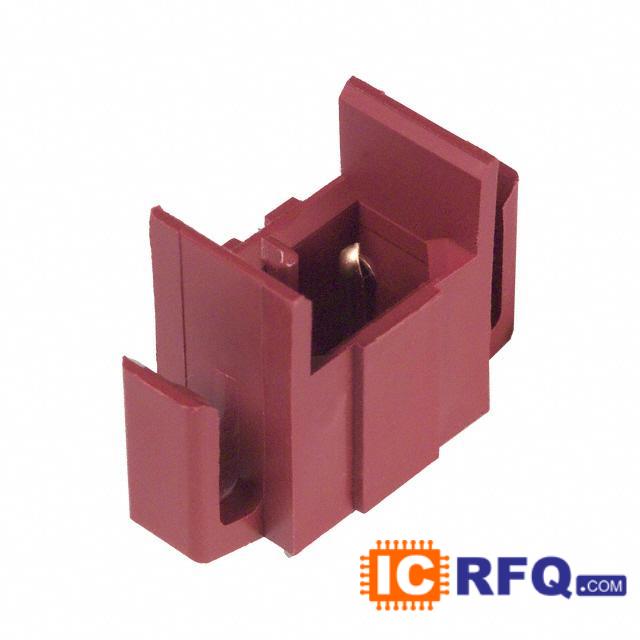

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | MP2-P210-51M1-TR30 |
|---|---|
| Manufacturer | 3M |
| Description | CONN INV HEADER 2-FB 210POS 5ROW |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| MP2-P210-51M1-TR30 Price |  |
Technical Specifications of MP2-P210-51M1-TR30
| Datasheet |  MP2-P210-51M1-TR30 datasheet |
|---|---|
| PCN Obsolescence/ EOL | MP2 Series 01/Oct/2012 |
| Standard Package | 120 |
| Category | Connectors, Interconnects |
| Family | Backplane Connectors - Specialized |
| Series | MetPak? MP2 |
| Packaging | Tube |
| Connector Usage | Backplane |
| Connector Type | Header, Male Pins |
| Connector Style | Futurebus+? |
| Number of Positions | 210 |
| Number of Positions Loaded | All |
| Pitch | 0.079" (2.00mm) |
| Number of Rows | 5 |
| Number of Columns | - |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Termination | Solder |
| Contact Layout, Typical | - |
| Features | Board Guide, Inverse |
| Contact Finish | Gold |
| Contact Finish Thickness | 3μin (0.08μm) |
| Color | Beige |
| Current Rating | 1.5A |
| Material Flammability Rating | UL94 V-0 |
| Operating Temperature | -55°C ~ 125°C |
| Voltage Rating | - |
| Other Names | 04801141226 15020602106 4801141226 48011412269 MP2P21051M1TR30 |
