MP2-S024-41M1-C-LR

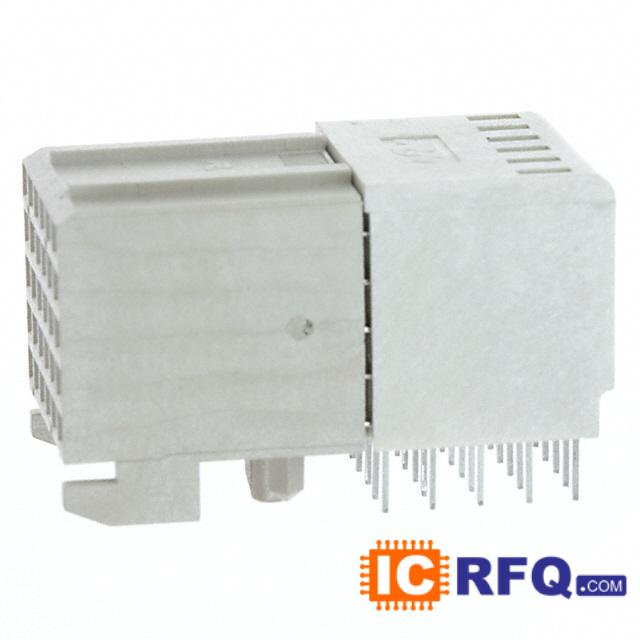

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | MP2-S024-41M1-C-LR |
|---|---|
| Manufacturer | 3M |
| Description | CONN SOCKET R/A 4R0W 24POS SLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| MP2-S024-41M1-C-LR Price |  |
Technical Specifications of MP2-S024-41M1-C-LR
| Datasheet |  MP2-S024-41M1-C-LR datasheet |
|---|---|
| Product Photos | MP2-S024-41M1-C-LR |
| Catalog Drawings | MP2-S Series |
| Standard Package | 1,008 |
| Category | Connectors, Interconnects |
| Family | Backplane Connectors - Specialized |
| Series | MetPak? MP2 |
| Packaging | Tube |
| Connector Usage | Backplane |
| Connector Type | Receptacle, Female Sockets |
| Connector Style | Futurebus+? |
| Number of Positions | 24 |
| Number of Positions Loaded | All |
| Pitch | 0.079" (2.00mm) |
| Number of Rows | 4 |
| Number of Columns | - |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Termination | Solder |
| Contact Layout, Typical | - |
| Features | Board Guide, Board Lock, Spacer |
| Contact Finish | Gold |
| Contact Finish Thickness | 3μin (0.08μm) |
| Color | Beige |
| Current Rating | 1.5A |
| Material Flammability Rating | UL94 V-0 |
| Operating Temperature | -55°C ~ 125°C |
| Voltage Rating | - |
| Online Catalog | MetPak? MP2 Series |
| Mating Products | 3M5499-ND - CONN HEADER VERT 4R0W 24POS SLD 3M5501-ND - CONN HEADER VERT 4R0W 24POS P-F MP2-H024-41P1-S-TG30-ND - CONN HEADER 2-FB 24POS 4ROW |
| Other Names | 3M5492 5111174459 51111744598 80000916587 MP2S02441M1CLR |
