CEE2X92PF180PY4

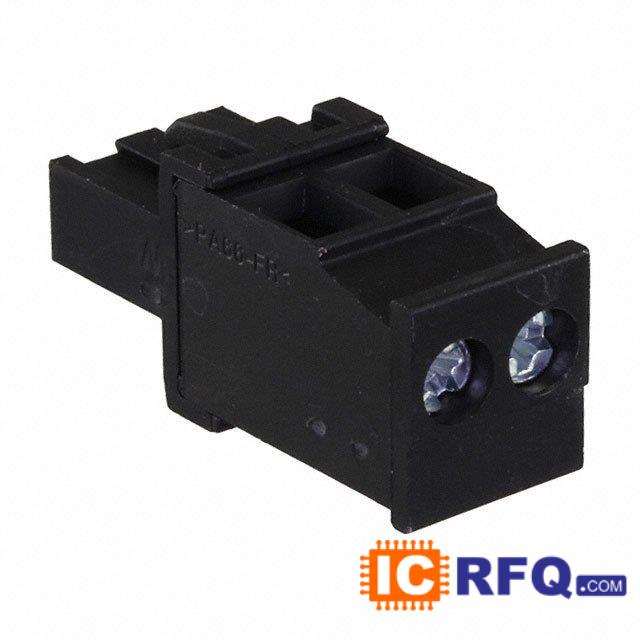

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | CEE2X92PF180PY4 |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CEE2X92PF 3.3 VOLT |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| CEE2X92PF180PY4 Price |  |
Technical Specifications of CEE2X92PF180PY4
| Datasheet |  CEE2X92PF180PY4 datasheet |
|---|---|
| PCN Obsolescence/ EOL | Edge Card 12/Dec/2013 |
| PCN Design/Specification | CEE PRESS-FIT Plating 12/March/2010 |
| Standard Package | 4 |
| Category | Connectors, Interconnects |
| Family | Card Edge Connectors - Edgeboard Connectors |
| Series | - |
| Packaging | Tray |
| Card Type | Computerbus |
| Gender | Female |
| Number of Positions/Bay/Row | - |
| Number of Positions | 184 |
| Card Thickness | 0.062" (1.57mm) |
| Number of Rows | 2 |
| Pitch | 0.100" (2.54mm) |
| Features | Board Guide |
| Mounting Type | Through Hole |
| Termination | Press-Fit |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Type | Cantilever |
| Color | Black |
| Flange Feature | - |
| Operating Temperature | -40°C ~ 105°C |
| Material - Insulation | Polyamide (PA), Nylon |
| Read Out | Dual |
