RBM12DCAD

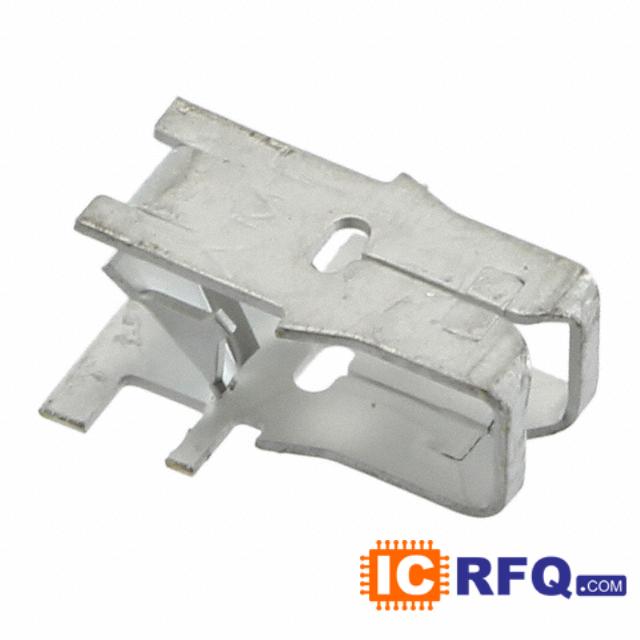

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | RBM12DCAD |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN EDGECARD 24POS R/A .156 SLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| RBM12DCAD Price |  |
Technical Specifications of RBM12DCAD
| Datasheet |  RBM12DCAD datasheet |
|---|---|
| Standard Package | 1 |
| Category | Connectors, Interconnects |
| Family | Card Edge Connectors - Edgeboard Connectors |
| Series | - |
| Packaging | Tray |
| Card Type | Non Specified - Dual Edge |
| Gender | Female |
| Number of Positions/Bay/Row | 12 |
| Number of Positions | 24 |
| Card Thickness | 0.062" (1.57mm) |
| Number of Rows | 2 |
| Pitch | 0.156" (3.96mm) |
| Features | - |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Contact Finish Thickness | 10μin (0.25μm) |
| Contact Type | Hairpin Bellows |
| Color | Green |
| Flange Feature | Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia |
| Operating Temperature | -65°C ~ 125°C |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Read Out | Dual |
