EBM15DREH

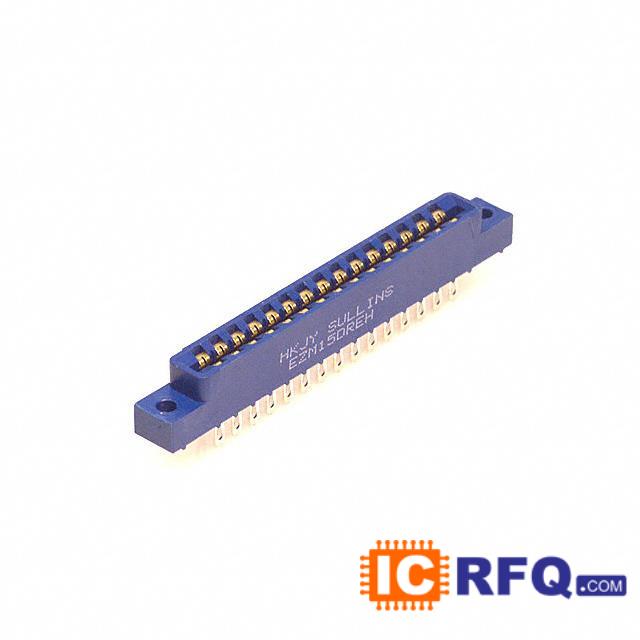

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | EBM15DREH |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN EDGE DUAL .156 PCB 30POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| EBM15DREH Price |  |
Technical Specifications of EBM15DREH
| Datasheet |  EBM15DREH datasheet |
|---|---|
| Product Photos | E(B,Z)M15DREH |
| Catalog Drawings | Edgecard Eyelet |
| Standard Package | 1 |
| Category | Connectors, Interconnects |
| Family | Card Edge Connectors - Edgeboard Connectors |
| Series | - |
| Packaging | Tray |
| Card Type | Non Specified - Dual Edge |
| Gender | Female |
| Number of Positions/Bay/Row | 15 |
| Number of Positions | 30 |
| Card Thickness | 0.062" (1.57mm) |
| Number of Rows | 2 |
| Pitch | 0.156" (3.96mm) |
| Features | - |
| Mounting Type | Panel Mount |
| Termination | Solder Eyelet(s) |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Contact Finish Thickness | 10μin (0.25μm) |
| Contact Type | Full Bellows |
| Color | Blue |
| Flange Feature | Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia |
| Operating Temperature | -65°C ~ 125°C |
| Material - Insulation | Polybutylene Terephthalate (PBT) |
| Read Out | Dual |
| Online Catalog | EBM Series |
| Other Names | S3343 |
