ABC22DRSI

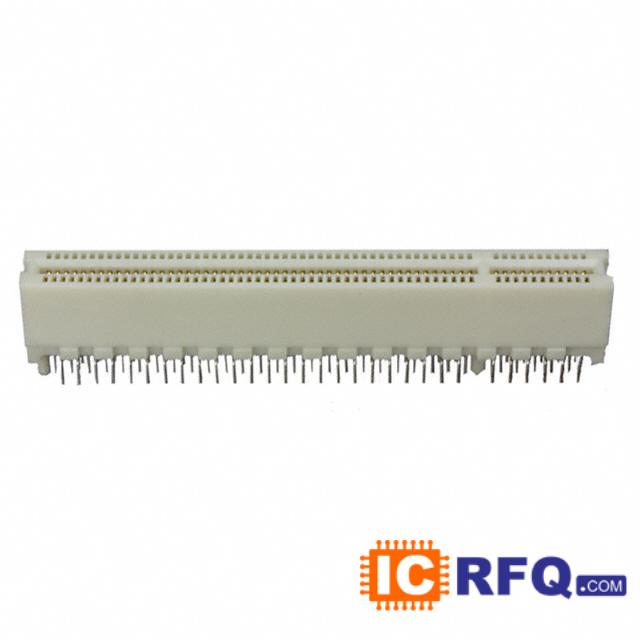

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | ABC22DRSI |
|---|---|
| Manufacturer | Sullins Connector Solutions |
| Description | CONN EDGECARD 44POS .100" |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| ABC22DRSI Price |  |
Technical Specifications of ABC22DRSI
| Datasheet |  ABC22DRSI datasheet |
|---|---|
| Standard Package | 1 |
| Category | Connectors, Interconnects |
| Family | Card Edge Connectors - Edgeboard Connectors |
| Series | - |
| Packaging | Tray |
| Card Type | Non Specified - Dual Edge |
| Gender | Female |
| Number of Positions/Bay/Row | 22 |
| Number of Positions | 44 |
| Card Thickness | 0.062" (1.57mm) |
| Number of Rows | 2 |
| Pitch | 0.100" (2.54mm) |
| Features | - |
| Mounting Type | Through Hole |
| Termination | Solder |
| Contact Material | Beryllium Copper |
| Contact Finish | Gold |
| Contact Finish Thickness | 10μin (0.25μm) |
| Contact Type | Loop Bellows |
| Color | - |
| Flange Feature | Top Mount Opening, Threaded Insert, 4-40 |
| Operating Temperature | -65°C ~ 150°C |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Read Out | Dual |
