ZW-07-11-S-D-430-115-LL

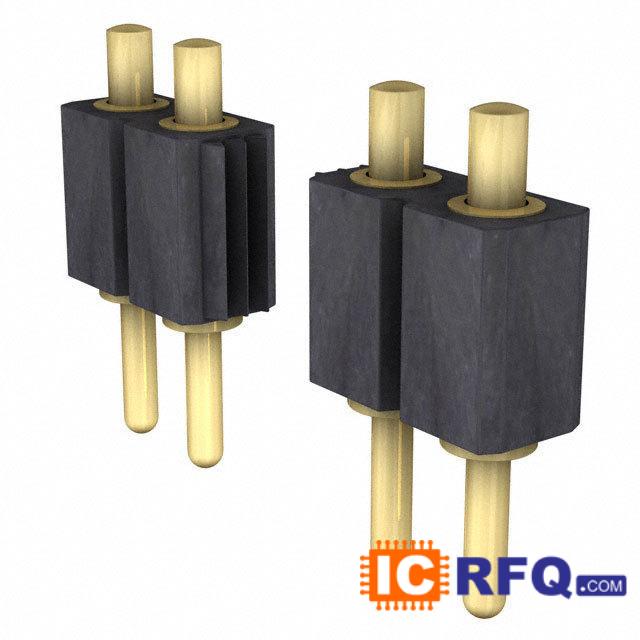

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | ZW-07-11-S-D-430-115-LL |
|---|---|
| Manufacturer | Samtec Inc. |
| Description | CONN BOARD STKR HDR 14POS 2.54MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| ZW-07-11-S-D-430-115-LL Price |  |
Technical Specifications of ZW-07-11-S-D-430-115-LL
| Datasheet |  ZW-07-11-S-D-430-115-LL datasheet |
|---|---|
| Category | Connectors, Interconnects |
| Family | Rectangular - Board to Board Connectors - Board Spacers, Stackers |
| Manufacturer | Samtec-Inc. |
| Series | Flex Stack, ZW |
| Packaging | Tube |
| Number of Positions | 14 |
| Pitch | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing | 0.100" (2.54mm) |
| Length - Overall | 0.930" (23.62mm) |
| Length - Post (Mating) | 0.385" (9.78mm) |
| Length - Stack Height | 0.430" (10.92mm) |
| Length - Tail | 0.115" (2.92mm) |
| Mounting Type | Through Hole |
| Termination | Kinked Pin, Solder |
| Contact Finish - Post (Mating) | Gold |
| Contact Finish Thickness - Post (Mating) | 30μin (0.76μm) |
| Color | Black |
