5-1571556-1

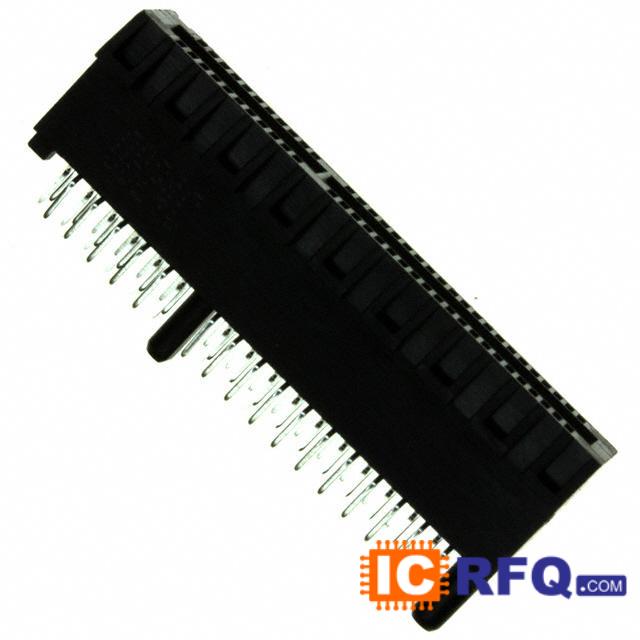

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | 5-1571556-1 |
|---|---|
| Manufacturer | TE Connectivity AMP Connectors |
| Description | CONN HEADR 120POS .079" 4ROW |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| 5-1571556-1 Price |  |
Technical Specifications of 5-1571556-1
| Datasheet |  5-1571556-1 datasheet |
|---|---|
| Category | Connectors, Interconnects |
| Family | Rectangular - Board to Board Connectors - Board Spacers, Stackers |
| Manufacturer | TE-Connectivity-AMP-Connectors |
| Series | AMPMODU |
| Packaging | Tape & Reel (TR) |
| Number of Positions | 120 |
| Pitch | 0.079" (2.00mm) |
| Number of Rows | 4 |
| Row Spacing | 0.079" (2.00mm) |
| Length - Overall | 0.575" (14.61mm) |
| Length - Post (Mating) | 0.142" (3.60mm) |
| Length - Stack Height | 0.335" (8.50mm) |
| Length - Tail | 0.091" (2.30mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Contact Finish - Post (Mating) | Gold |
| Contact Finish Thickness - Post (Mating) | 30μin (0.76μm) |
| Color | - |
