CES-112-01-T-D

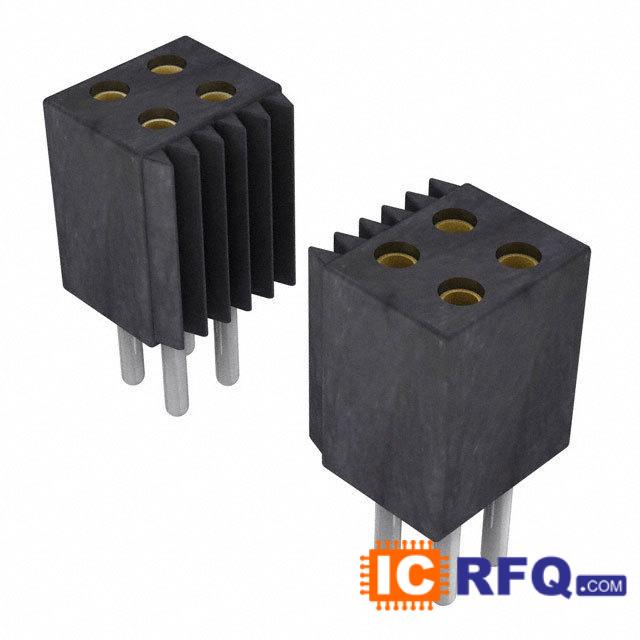

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | CES-112-01-T-D |
|---|---|
| Manufacturer | Samtec Inc. |
| Description | 24 Position Receptacle Connector Tin 0.100" (2.54mm) Through Hole |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| CES-112-01-T-D Price |  |
Technical Specifications of CES-112-01-T-D
| Datasheet |  CES-112-01-T-D datasheet |
|---|---|
| Category | Connectors, Interconnects |
| Family | Rectangular - Board to Board Connectors - Headers, Receptacles, Female Sockets |
| Manufacturer | Samtec-Inc. |
| Series | CES |
| Packaging | Bulk |
| Connector Type | Receptacle |
| Number of Positions | 24 |
| Number of Positions Loaded | All |
| Pitch | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing | 0.100" (2.54mm) |
| Height Stacking (Mating) | - |
| Height Above Board | 0.200" (5.08mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
| Features | - |
| Color | Black |
