M52-5012045

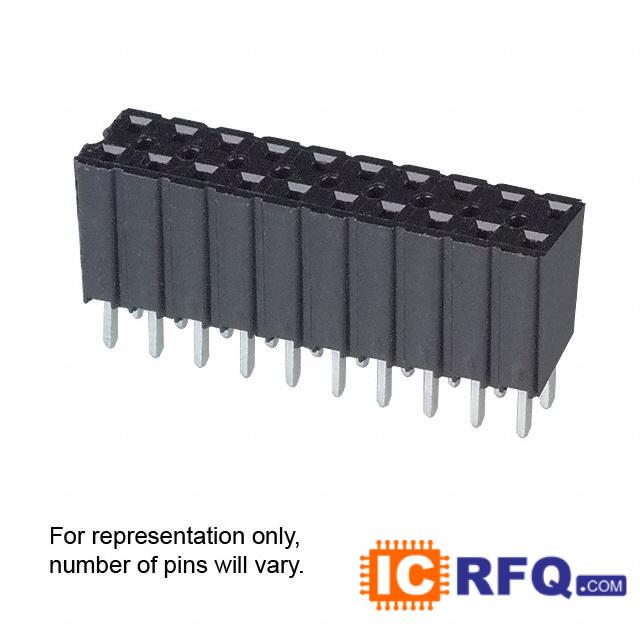

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | M52-5012045 |
|---|---|
| Manufacturer | Harwin Inc. |
| Description | 20 Position Receptacle Connector Gold 0.050" (1.27mm) Through Hole |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| M52-5012045 Price |  |
Technical Specifications of M52-5012045
| Datasheet |  M52-5012045 datasheet |
|---|---|
| Category | Connectors, Interconnects |
| Family | Rectangular - Board to Board Connectors - Headers, Receptacles, Female Sockets |
| Manufacturer | Harwin-Inc. |
| Series | Archer M52 |
| Packaging | Tube |
| Connector Type | Receptacle |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Pitch | 0.050" (1.27mm) |
| Number of Rows | 1 |
| Row Spacing | - |
| Height Stacking (Mating) | - |
| Height Above Board | 0.335" (8.50mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Contact Finish | Gold |
| Contact Finish Thickness | - |
| Features | - |
| Color | Black |
