M20-9750946

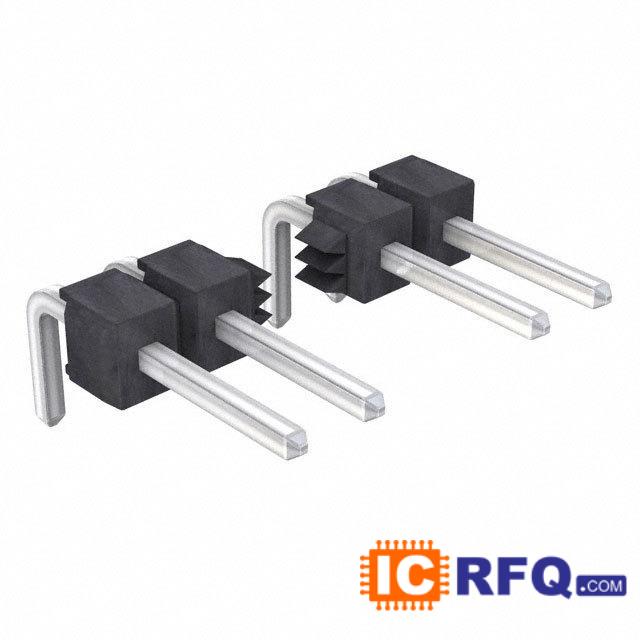

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | M20-9750946 |
|---|---|
| Manufacturer | Harwin Inc. |
| Description | 9 Positions Header, Unshrouded, Breakaway Connector 0.100" (2.54mm) Through Hole, Right Angle Tin |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| M20-9750946 Price |  |
Technical Specifications of M20-9750946
| Datasheet |  M20-9750946 datasheet |
|---|---|
| Category | Connectors, Interconnects |
| Family | Rectangular Connectors - Headers, Male Pins |
| Manufacturer | Harwin Inc. |
| Series | M20 |
| Packaging | Bulk |
| Contact Type | Male Pin |
| Connector Type | Header, Unshrouded, Breakaway |
| Number of Positions | 9 |
| Number of Positions Loaded | All |
| Pitch | 0.100" (2.54mm) |
| Number of Rows | 1 |
| Row Spacing | - |
| Contact Mating Length | 0.228" (5.80mm) |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | - |
| Features | - |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
| Color | Black |
