TSW-140-08-L-S-RA

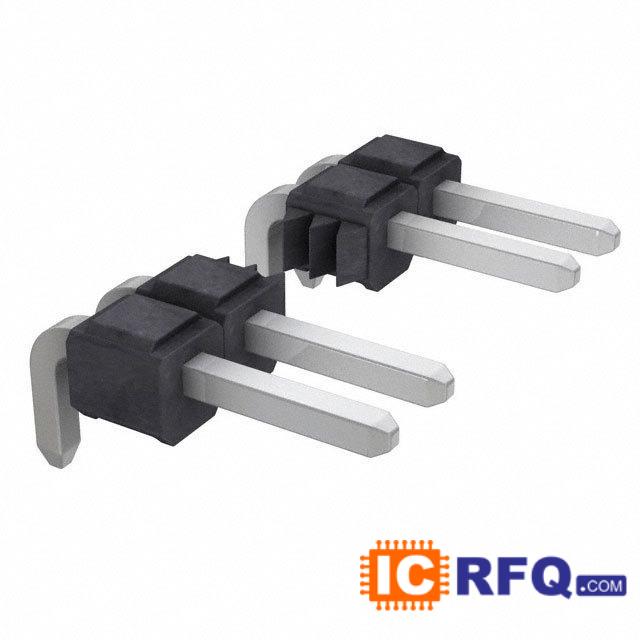

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | TSW-140-08-L-S-RA |
|---|---|
| Manufacturer | Samtec Inc. |
| Description | 40 Positions Header, Unshrouded Connector 0.100" (2.54mm) Through Hole, Right Angle Gold |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| TSW-140-08-L-S-RA Price |  |
Technical Specifications of TSW-140-08-L-S-RA
| Datasheet |  TSW-140-08-L-S-RA datasheet |
|---|---|
| Category | Connectors, Interconnects |
| Family | Rectangular Connectors - Headers, Male Pins |
| Manufacturer | Samtec Inc. |
| Series | TSW |
| Packaging | Bulk |
| Contact Type | Male Pin |
| Connector Type | Header, Unshrouded |
| Number of Positions | 40 |
| Number of Positions Loaded | All |
| Pitch | 0.100" (2.54mm) |
| Number of Rows | 1 |
| Row Spacing | - |
| Contact Mating Length | 0.230" (5.84mm) |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | - |
| Features | - |
| Contact Finish | Gold |
| Contact Finish Thickness | 10μin (0.25μm) |
| Color | Black |
