S10B-XH-A(LF)(SN)
(SN).JPG)

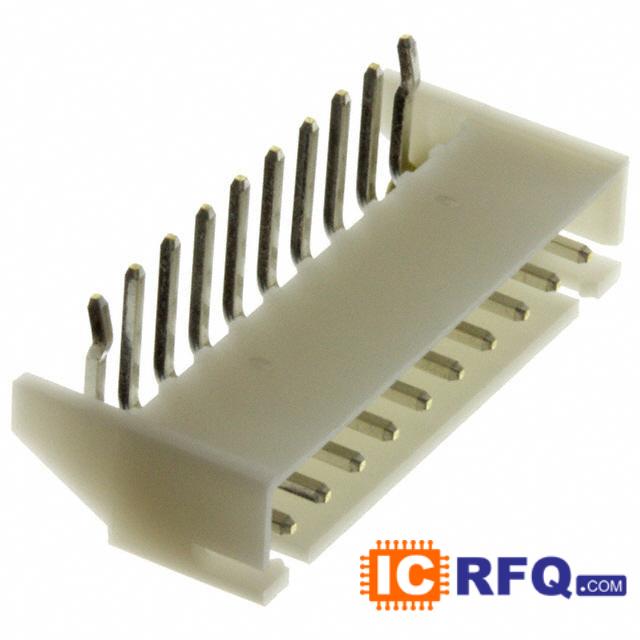

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | S10B-XH-A(LF)(SN) |
|---|---|
| Manufacturer | JST Sales America Inc. |
| Description | 10 Positions Header, Shrouded Connector 0.098" (2.50mm) Through Hole, Right Angle Tin |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| S10B-XH-A(LF)(SN) Price |  |
Technical Specifications of S10B-XH-A(LF)(SN)
| Datasheet |  S10B-XH-A(LF)(SN) datasheet |
|---|---|
| Category | Connectors, Interconnects |
| Family | Rectangular Connectors - Headers, Male Pins |
| Manufacturer | JST Sales America Inc. |
| Series | XH |
| Packaging | Bulk |
| Contact Type | Male Pin |
| Connector Type | Header, Shrouded |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Pitch | 0.098" (2.50mm) |
| Number of Rows | 1 |
| Row Spacing | - |
| Contact Mating Length | - |
| Mounting Type | Through Hole, Right Angle |
| Termination | Press-Fit |
| Fastening Type | Detent Lock |
| Features | - |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
| Color | Natural |
