CWN-562-26-0021

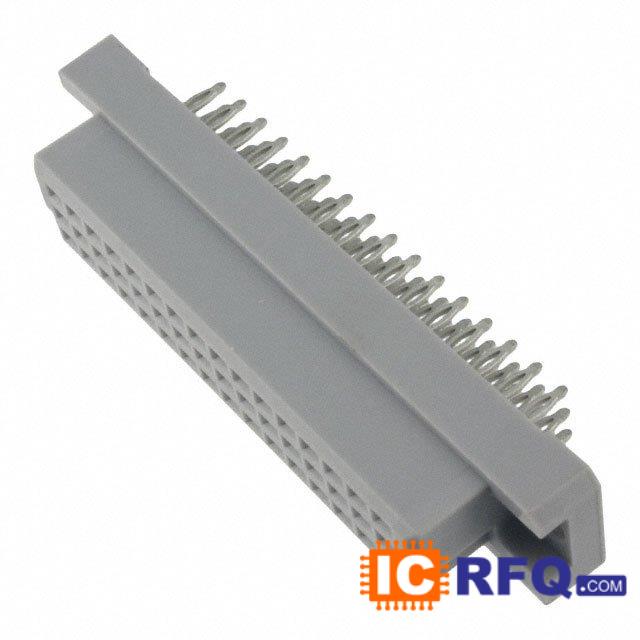

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | CWN-562-26-0021 |
|---|---|
| Manufacturer | CW Industries |
| Description | 26 Positions Header, Shrouded Connector 0.100" (2.54mm) Through Hole Gold |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| CWN-562-26-0021 Price |  |
Technical Specifications of CWN-562-26-0021
| Datasheet |  CWN-562-26-0021 datasheet |
|---|---|
| Category | Connectors, Interconnects |
| Family | Rectangular Connectors - Headers, Male Pins |
| Manufacturer | CW Industries |
| Series | CWN |
| Packaging | Bulk |
| Contact Type | Male Pin |
| Connector Type | Header, Shrouded |
| Number of Positions | 26 |
| Number of Positions Loaded | All |
| Pitch | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing | 0.100" (2.54mm) |
| Contact Mating Length | 0.240" (6.10mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Latch Lock/Eject Hooks, Long |
| Features | - |
| Contact Finish | Gold |
| Contact Finish Thickness | 30μin (0.76μm) |
| Color | Blue |
