IPT1-110-01-S-D-VS

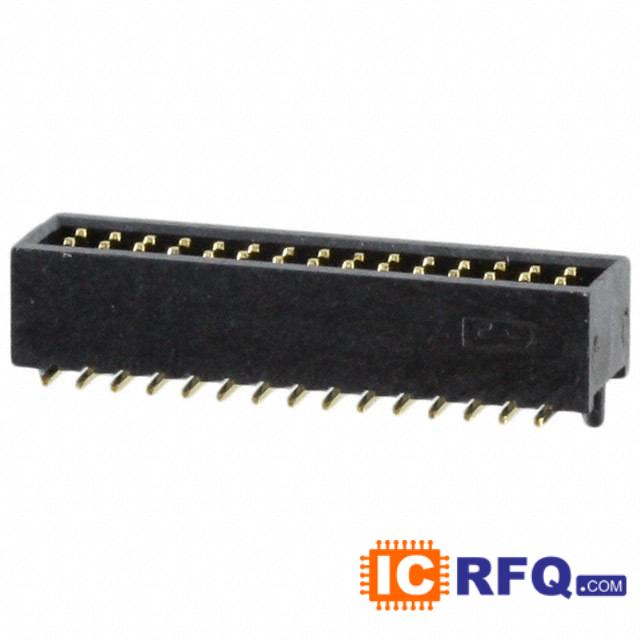

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | IPT1-110-01-S-D-VS |
|---|---|
| Manufacturer | Samtec Inc. |
| Description | 20 Positions Header, Shrouded Connector 0.100" (2.54mm) Surface Mount Gold |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| IPT1-110-01-S-D-VS Price |  |
Technical Specifications of IPT1-110-01-S-D-VS
| Datasheet |  IPT1-110-01-S-D-VS datasheet |
|---|---|
| Category | Connectors, Interconnects |
| Family | Rectangular Connectors - Headers, Male Pins |
| Manufacturer | Samtec Inc. |
| Series | Mini Mate? IPT1 |
| Packaging | Tube |
| Contact Type | Male Pin |
| Connector Type | Header, Shrouded |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Pitch | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing | 0.100" (2.54mm) |
| Contact Mating Length | 0.155" (3.94mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | - |
| Features | - |
| Contact Finish | Gold |
| Contact Finish Thickness | 30μin (0.76μm) |
| Color | Black |
