5-794620-2

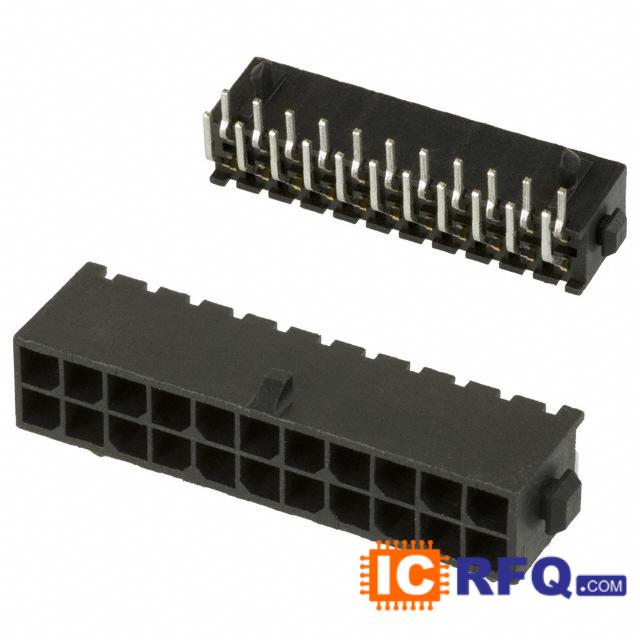

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | 5-794620-2 |
|---|---|
| Manufacturer | TE Connectivity AMP Connectors |
| Description | 22 Positions Header, Shrouded Connector 0.118" (3.00mm) Through Hole, Right Angle Gold |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| 5-794620-2 Price |  |
Technical Specifications of 5-794620-2
| Datasheet |  5-794620-2 datasheet |
|---|---|
| Category | Connectors, Interconnects |
| Family | Rectangular Connectors - Headers, Male Pins |
| Manufacturer | TE Connectivity AMP Connectors |
| Series | Micro MATE-N-LOK |
| Packaging | Tray |
| Contact Type | Male Pin |
| Connector Type | Header, Shrouded |
| Number of Positions | 22 |
| Number of Positions Loaded | All |
| Pitch | 0.118" (3.00mm) |
| Number of Rows | 2 |
| Row Spacing | 0.118" (3.00mm) |
| Contact Mating Length | - |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Features | Board Lock |
| Contact Finish | Gold |
| Contact Finish Thickness | 30μin (0.76μm) |
| Color | Black |
