SSM-109-L-DV

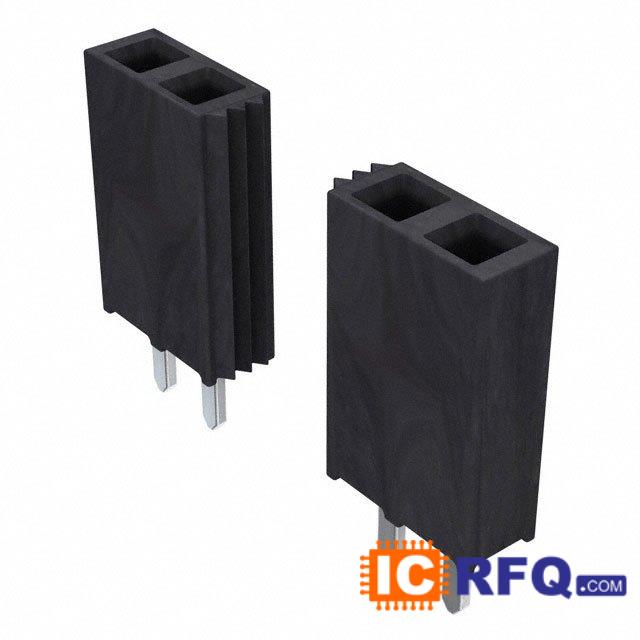

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | SSM-109-L-DV |
|---|---|
| Manufacturer | Samtec Inc. |
| Description | 18 Position Receptacle, Pass Through Connector 0.100" (2.54mm) Surface Mount Gold |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| SSM-109-L-DV Price |  |
Technical Specifications of SSM-109-L-DV
| Datasheet |  SSM-109-L-DV datasheet |
|---|---|
| Category | Connectors, Interconnects |
| Family | Rectangular Connectors - Headers, Receptacles, Female Sockets |
| Manufacturer | Samtec Inc. |
| Series | SSM |
| Packaging | Bulk |
| Connector Type | Receptacle, Pass Through |
| Contact Type | Female Socket |
| Number of Positions | 18 |
| Number of Positions Loaded | All |
| Pitch | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing | 0.100" (2.54mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | - |
| Features | - |
| Contact Finish | Gold |
| Contact Finish Thickness | 10μin (0.25μm) |
| Color | Black |
