1742370000

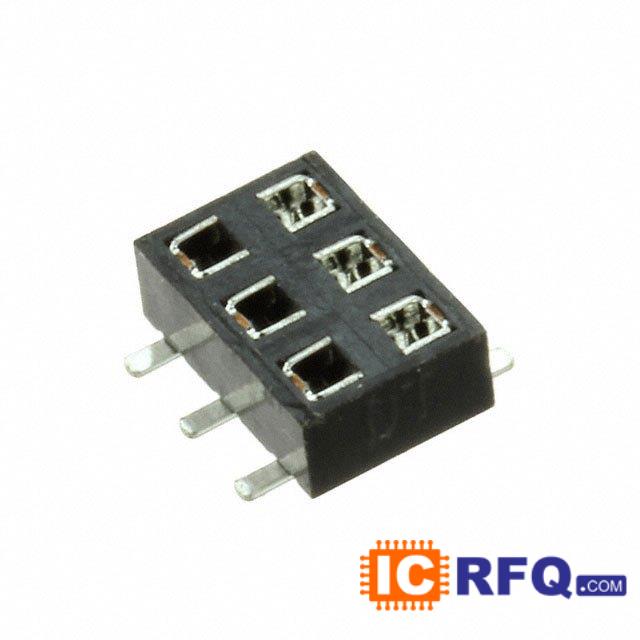

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | 1742370000 |
|---|---|
| Manufacturer | Weidmuller |
| Description | 6 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 225° Free Hanging (In-Line) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| 1742370000 Price |  |
Technical Specifications of 1742370000
| Category | Connectors, Interconnects |
|---|---|
| Family | Terminal Blocks - Headers, Plugs and Sockets |
| Manufacturer | Weidmuller |
| Series | Omnimate BL |
| Packaging | Bulk |
| Type | Plug, Female Sockets |
| Number of Positions | 6 |
| Positions Per Level | 6 |
| Number of Levels | 1 |
| Pitch | 0.200" (5.08mm) |
| Header Orientation | - |
| Plug Wire Entry | 225° |
| Termination Style | Screw - Clamping Yoke (Tension Sleeve) |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | 16.5A |
| Voltage - IEC | 400V |
| Current - UL | 10A |
| Voltage - UL | 300V |
| Wire Gauge or Range - AWG | 12-26 AWG |
| Wire Gauge or Range - mm2 | 0.2-2.5mm2 |
| Color | Black |
| Operating Temperature | -50°C ~ 100°C |
| Contact Mating Finish | Tin |
| Features | Retention Latches (Non-Wire Side) |
