1862962

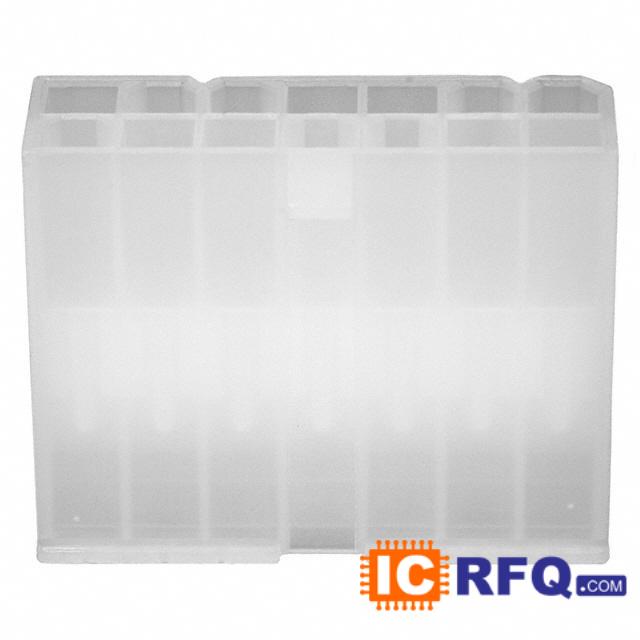

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | 1862962 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | 13 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 270° Free Hanging (In-Line) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| 1862962 Price |  |
Technical Specifications of 1862962
| Category | Connectors, Interconnects |
|---|---|
| Family | Terminal Blocks - Headers, Plugs and Sockets |
| Manufacturer | Phoenix Contact |
| Series | COMBICON MCVW |
| Packaging | Bulk |
| Type | Plug, Female Sockets |
| Number of Positions | 13 |
| Positions Per Level | 13 |
| Number of Levels | 1 |
| Pitch | 0.138" (3.50mm) |
| Header Orientation | - |
| Plug Wire Entry | 270° |
| Termination Style | Screw - Clamping Yoke (Tension Sleeve) |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | 8A |
| Voltage - IEC | 320V |
| Current - UL | 8A |
| Voltage - UL | 300V |
| Wire Gauge or Range - AWG | 14-30 AWG |
| Wire Gauge or Range - mm2 | 0.14-1.5mm2 |
| Color | Green |
| Operating Temperature | - |
| Contact Mating Finish | Tin |
| Features | - |
