ELVH10100

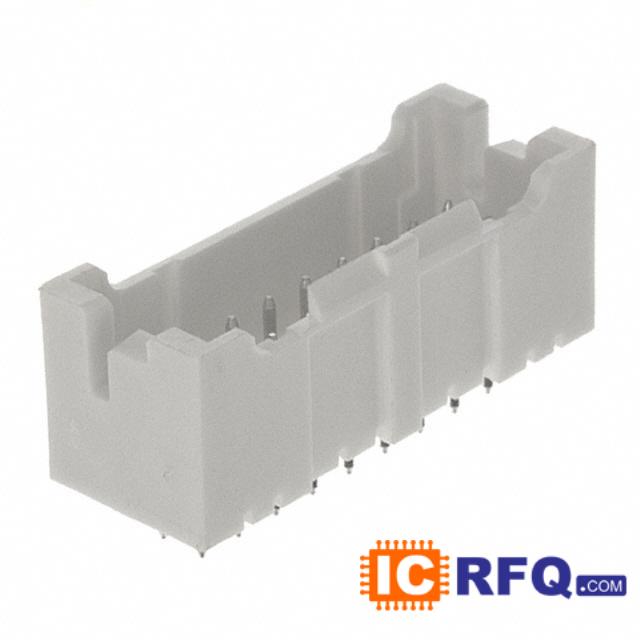

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | ELVH10100 |
|---|---|
| Manufacturer | Amphenol PCD |
| Description | 10 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) 90°, Right Angle Through Hole |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| ELVH10100 Price |  |
Technical Specifications of ELVH10100
| Category | Connectors, Interconnects |
|---|---|
| Family | Terminal Blocks - Headers, Plugs and Sockets |
| Manufacturer | Amphenol PCD |
| Series | ELVH |
| Packaging | Tray |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Number of Positions | 10 |
| Positions Per Level | 10 |
| Number of Levels | 1 |
| Pitch | 0.150" (3.81mm) |
| Header Orientation | 90°, Right Angle |
| Plug Wire Entry | - |
| Termination Style | Solder |
| Mounting Type | Through Hole |
| Current - IEC | - |
| Voltage - IEC | - |
| Current - UL | 12A |
| Voltage - UL | 300V |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm2 | - |
| Color | Black |
| Operating Temperature | 125°C |
| Contact Mating Finish | Tin |
| Features | - |
