VM14050100J0G

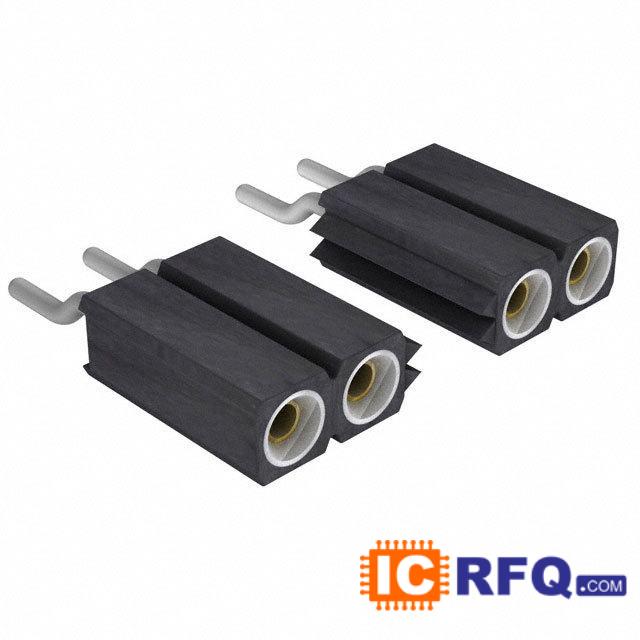

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | VM14050100J0G |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | 14 Position Terminal Block Plug, Female Sockets 0.300" (7.62mm) 180° Free Hanging (In-Line) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| VM14050100J0G Price |  |
Technical Specifications of VM14050100J0G
| Category | Connectors, Interconnects |
|---|---|
| Family | Terminal Blocks - Headers, Plugs and Sockets |
| Manufacturer | Amphenol FCI |
| Series | VM |
| Packaging | Bulk |
| Type | Plug, Female Sockets |
| Number of Positions | 14 |
| Positions Per Level | 14 |
| Number of Levels | 1 |
| Pitch | 0.300" (7.62mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screw - Pressure Clip |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | - |
| Voltage - IEC | - |
| Current - UL | 20A |
| Voltage - UL | 300V |
| Wire Gauge or Range - AWG | 12-22 AWG |
| Wire Gauge or Range - mm2 | - |
| Color | Black |
| Operating Temperature | -40°C ~ 115°C |
| Contact Mating Finish | Tin |
| Features | Retention Latches (Non-Wire Side) |
