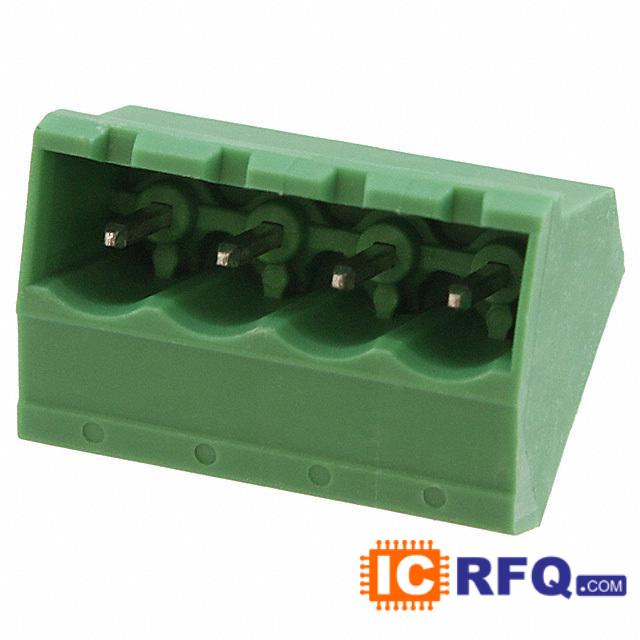

1767397
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Manufacturer Part Number | 1767397 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | 4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 45° Through Hole |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| 1767397 Price |  |
Technical Specifications of 1767397
| Category | Connectors, Interconnects |
|---|---|
| Family | Terminal Blocks - Headers, Plugs and Sockets |
| Manufacturer | Phoenix Contact |
| Series | COMBICON SMSTBA |
| Packaging | Bulk |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Number of Positions | 4 |
| Positions Per Level | 4 |
| Number of Levels | 1 |
| Pitch | 0.200" (5.08mm) |
| Header Orientation | 45° |
| Plug Wire Entry | - |
| Termination Style | Solder |
| Mounting Type | Through Hole |
| Current - IEC | 12A |
| Voltage - IEC | 630V |
| Current - UL | 15A |
| Voltage - UL | 300V |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm2 | - |
| Color | Green |
| Operating Temperature | - |
| Contact Mating Finish | Tin |
| Features | - |
