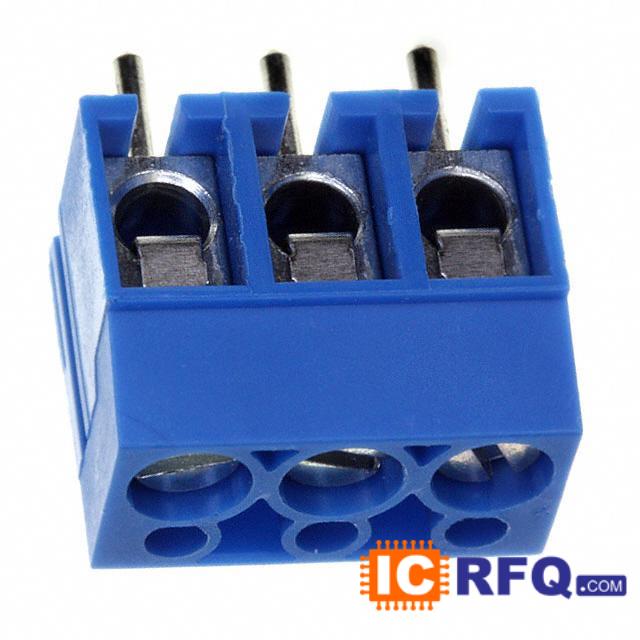

Technical Specifications of ED100/3DS
| Category | Connectors, Interconnects |
|---|
| Family | Terminal Blocks - Wire to Board |
|---|
| Manufacturer | On Shore Technology Inc. |
|---|
| Series | ED100/DS |
|---|
| Packaging | Bulk |
|---|
| Number of Levels | 1 |
|---|
| Positions Per Level | 3 |
|---|
| Pitch | 0.197" (5.00mm) |
|---|
| Mating Orientation | Horizontal with Board |
|---|
| Current | 15A |
|---|
| Voltage | 300V |
|---|
| Wire Gauge | 14-22 AWG |
|---|
| Mounting Type | Through Hole |
|---|
| Wire Termination | Screw - Leaf Spring, Wire Guard |
|---|
| Features | - |
|---|
| Color | Blue |
|---|
| Operating Temperature | -30°C ~ 105°C |
|---|
| Housing Material | Polyamide (PA), Nylon |
|---|
| Contact Material - Plating | - |
|---|
| Clamp Material - Plating | Steel, Stainless |
|---|
| Screw Material - Plating | - |
|---|
| Torque - Screw | 0.5 Nm (4.4 Lb-In) |
|---|
| Screw Thread | M3 |
|---|
We can supply On Shore Technology Inc. part# ED100/3DS. Use the request quote form to request ED100/3DS pirce and lead time. RANTLE EAST ELECTRONIC - ICRFQ.com is an independent stocking distributor of electronic components. With 5+ Million line items of available electronic components can ship in short lead-time, over 300 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ED100/3DS. The price and lead time for ED100/3DS depending on the quantity required, availability and warehouse location. Contact us today and our sales representative will provide you price and delivery on Part# ED100/3DS. We look forward to doing business with you.
